TASKalfa 3011i - Page 489

To Next Page

To Previous Page

10-8

Troubleshooting > Regular Maintenance

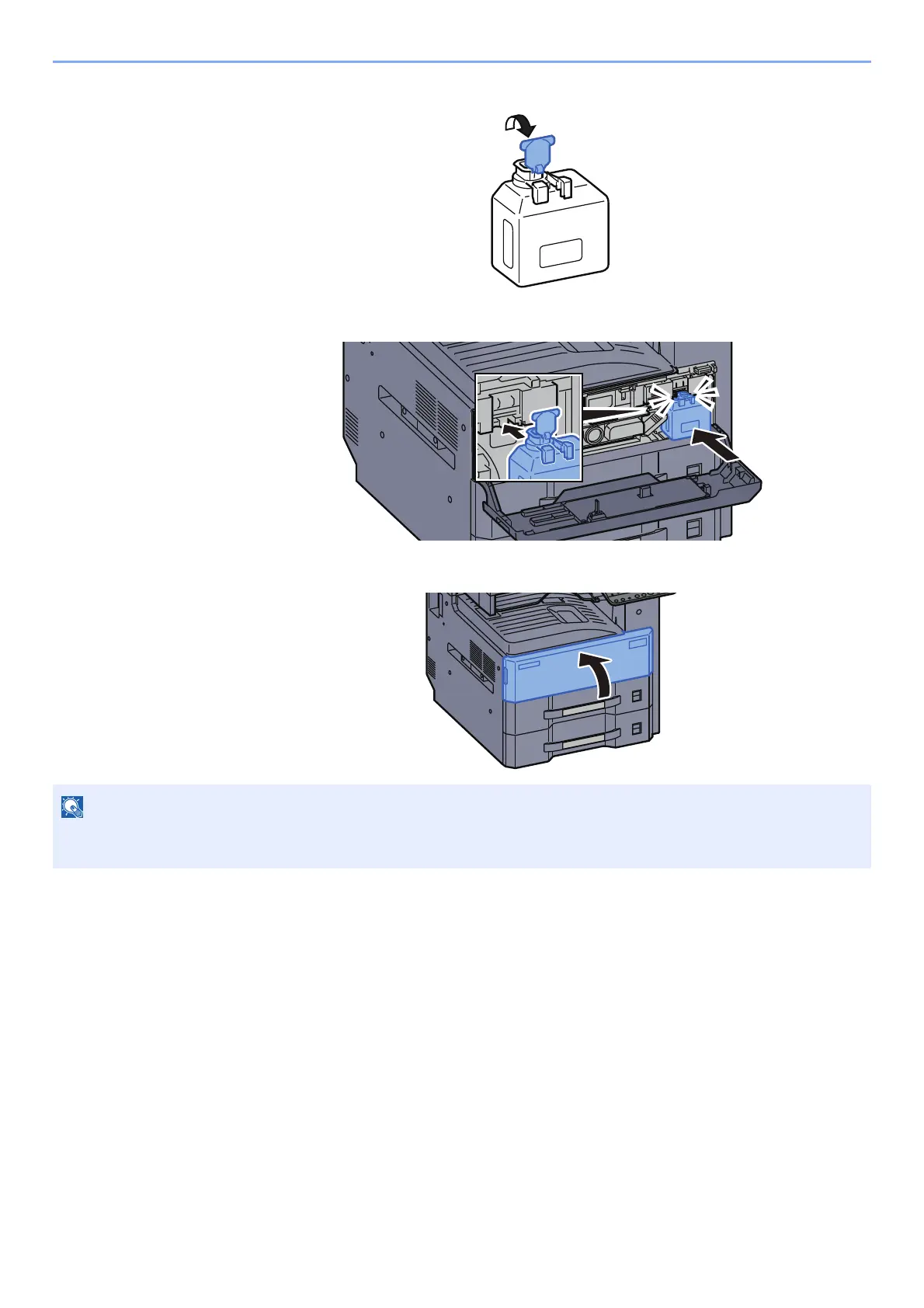

Open the cap of the new Waste Toner Box.

Install the Waste Toner Box.

Close the front cover.

NOTE

Return the exhausted waste toner box to your dealer or service representative. The collected waste toner box will be

recycled or disposed in accordance with the relevant regulations.
