10-55

Troubleshooting > Clearing Paper Jams

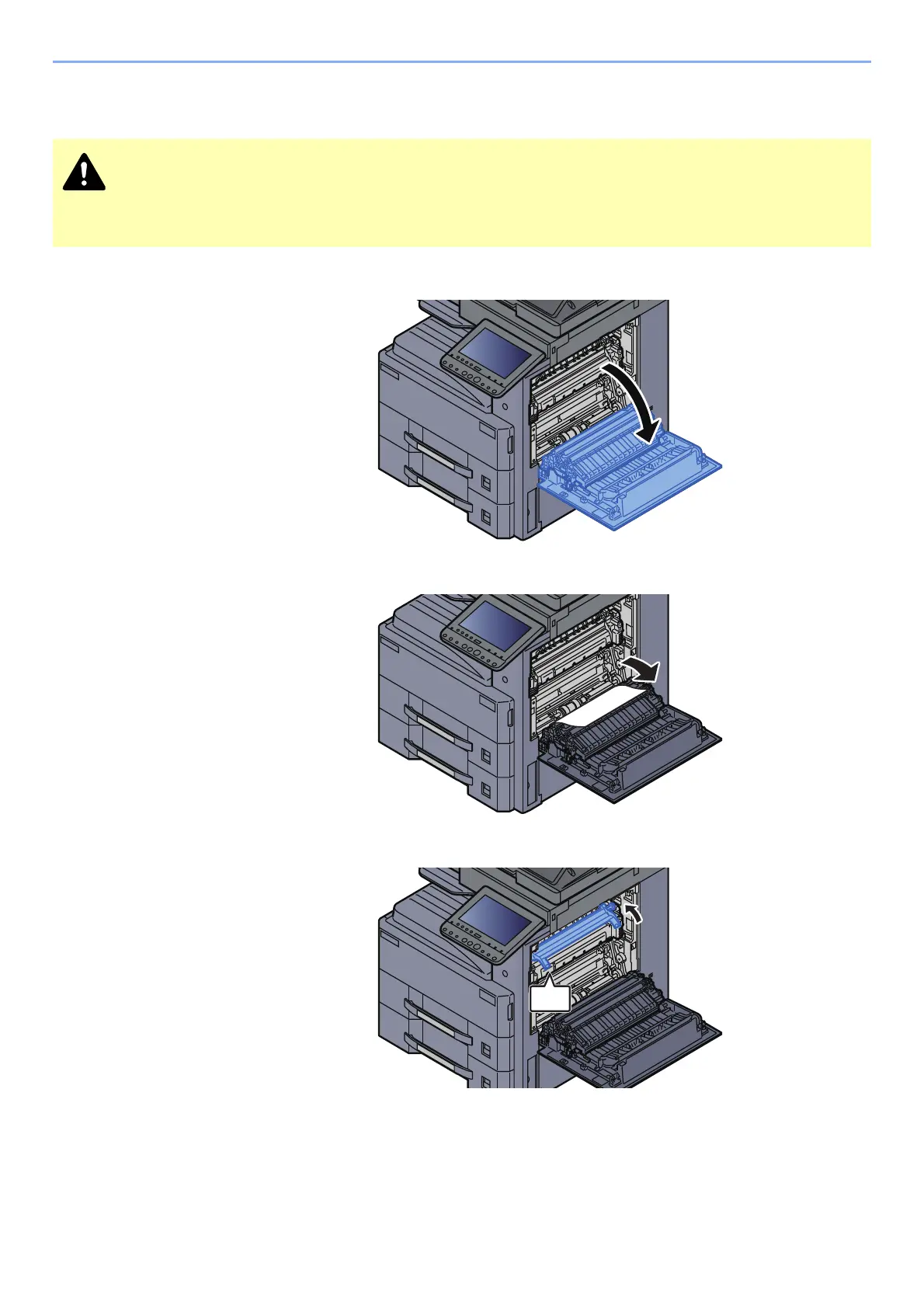

Remove any jammed paper in Duplex Unit

Open Right Cover 1.

Remove any jammed paper.

Open the fuser cover (a).

CAUTION

The fixing unit is extremely hot. Take sufficient care when working in this area, as there is a danger of getting

burned.
