Troubleshooting > Clearing a Staple Jam

Clearing a Staple Jam

Clearing a Staple Jam of the 1,000-Sheet Finisher

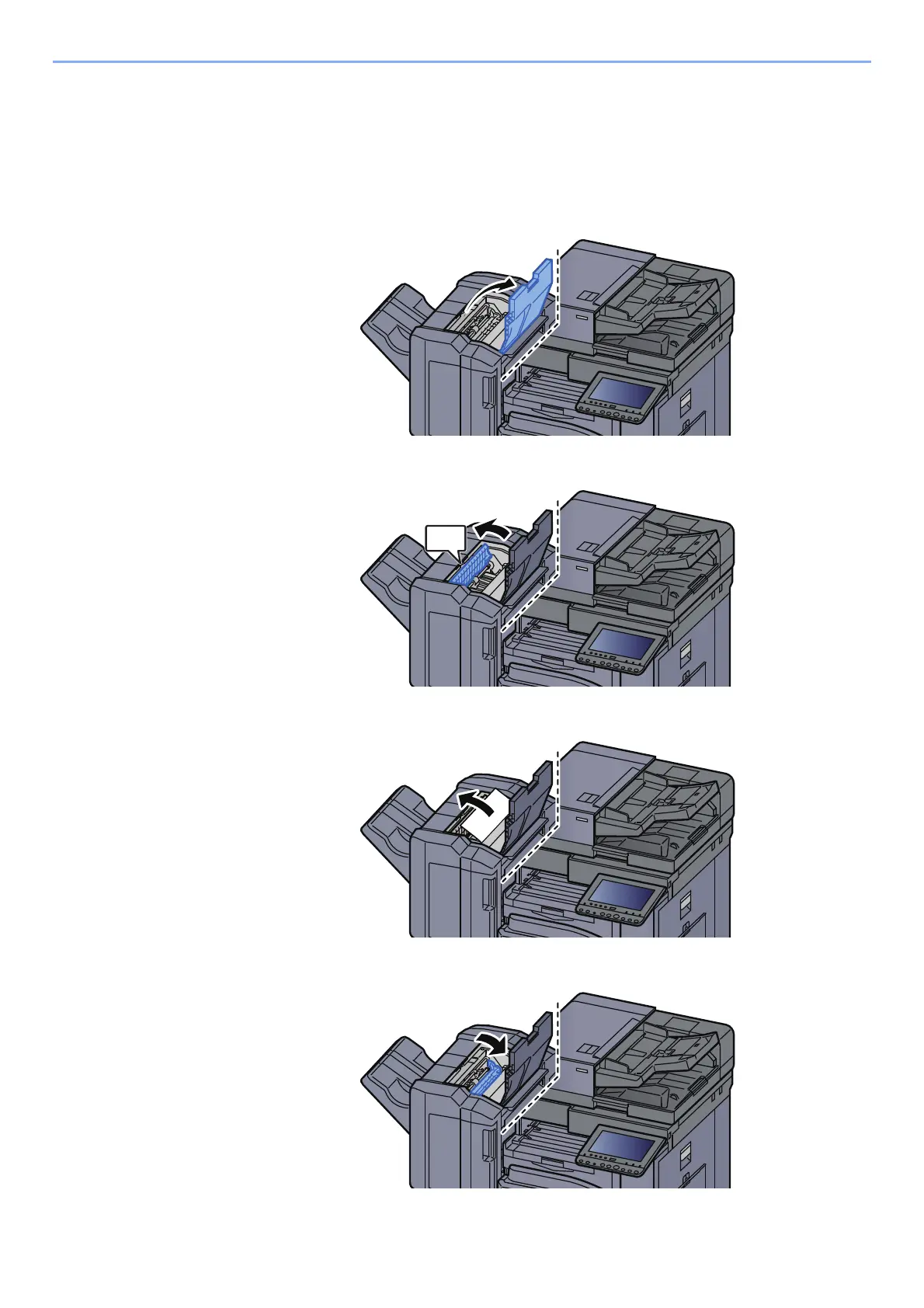

Open the finisher top cover.

Open the conveyor guide (D2).

Remove any jammed paper.

Return the conveyor guide (D2) to the original position.
