TASKalfa 3011i - Page 537

To Next Page

To Previous Page

10-56

Troubleshooting > Clearing Paper Jams

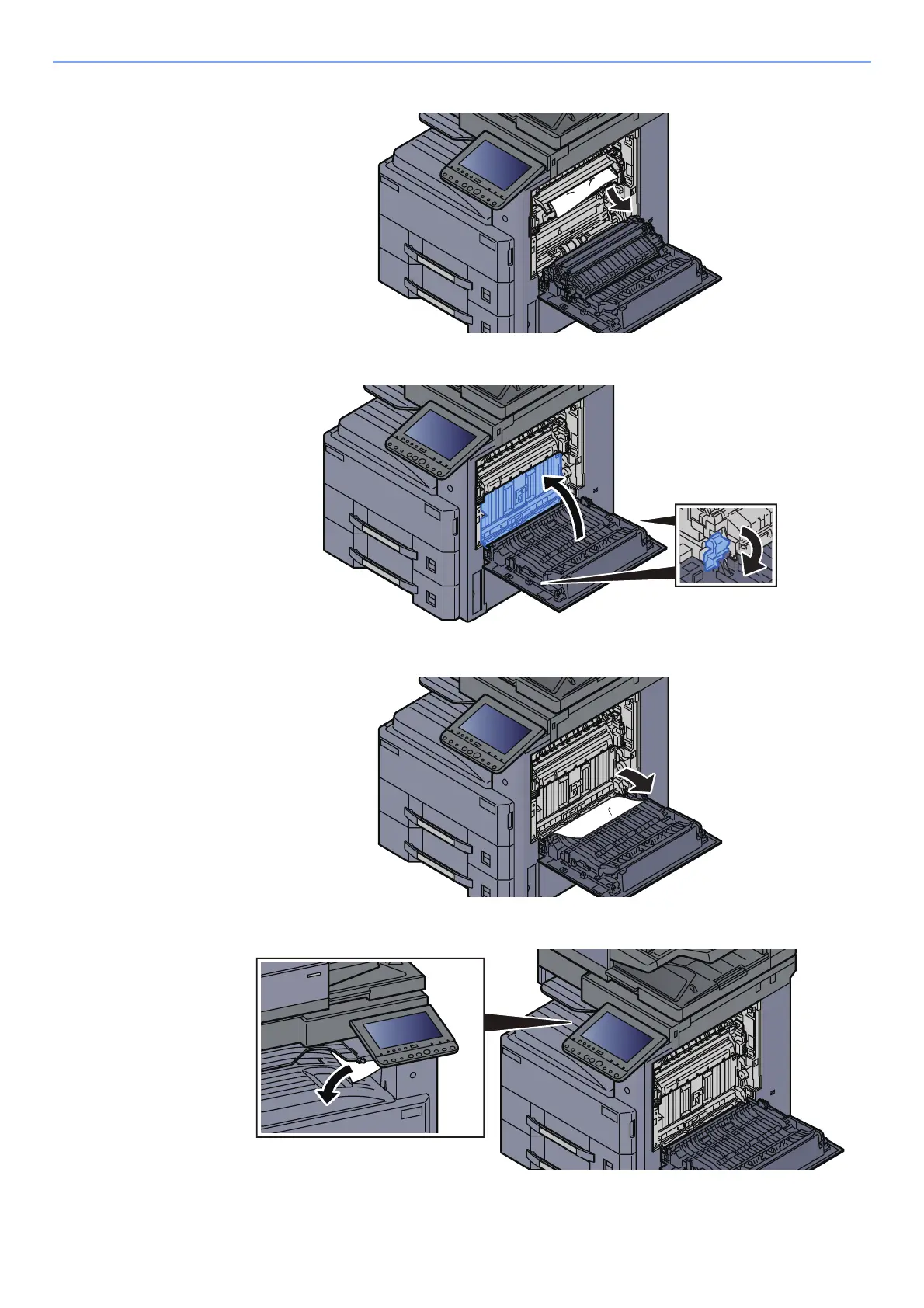

Remove any jammed paper.

Lift the duplex unit.

Remove any jammed paper.

Remove any paper from the paper ejection.
