TASKalfa 3011i - Page 531

To Next Page

To Previous Page

10-50

Troubleshooting > Clearing Paper Jams

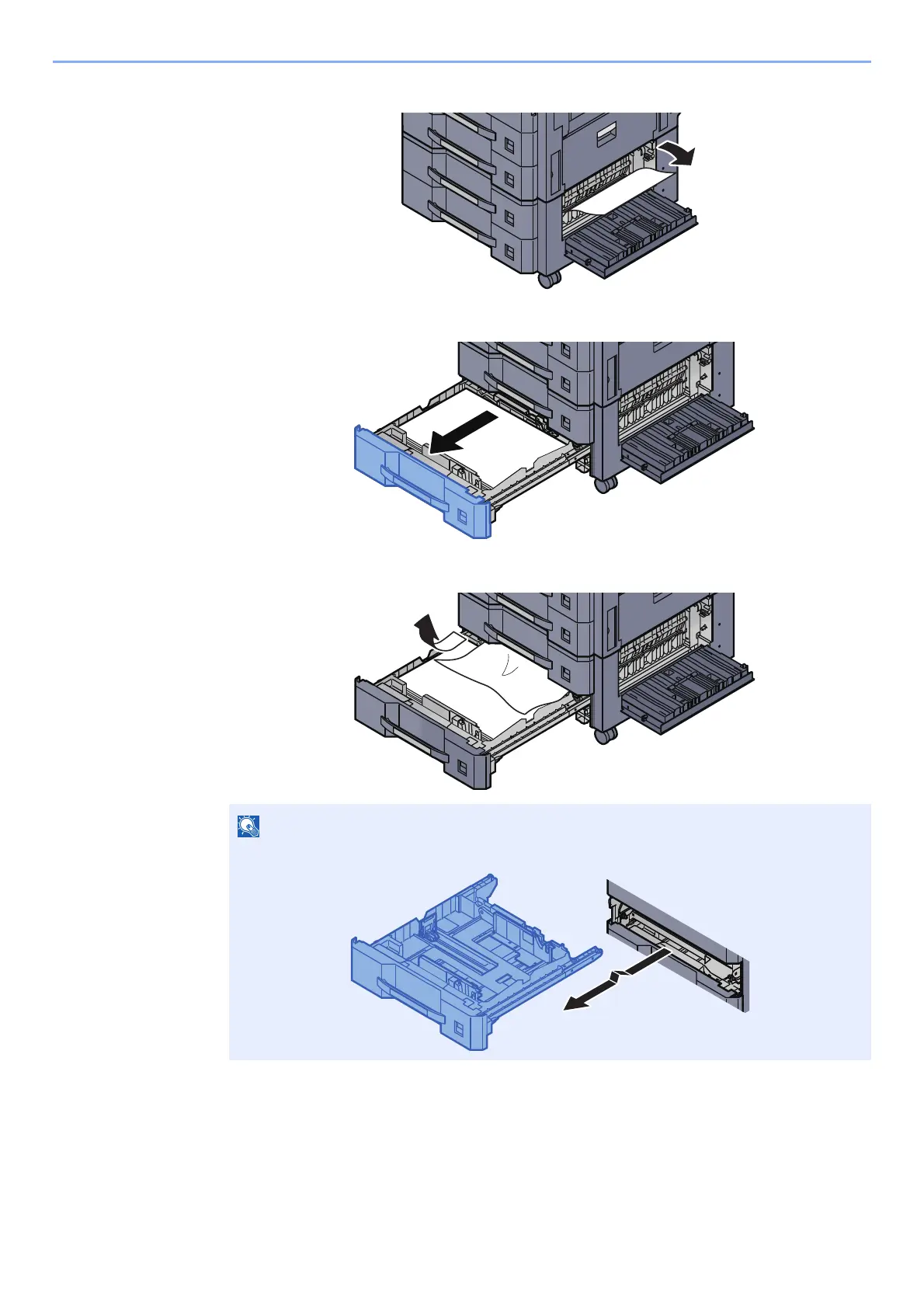

Remove any jammed paper.

Pull Cassette 4 out toward you until it stops.

Remove any jammed paper.

NOTE

The cassette can be removed.
