Troubleshooting > Clearing Paper Jams

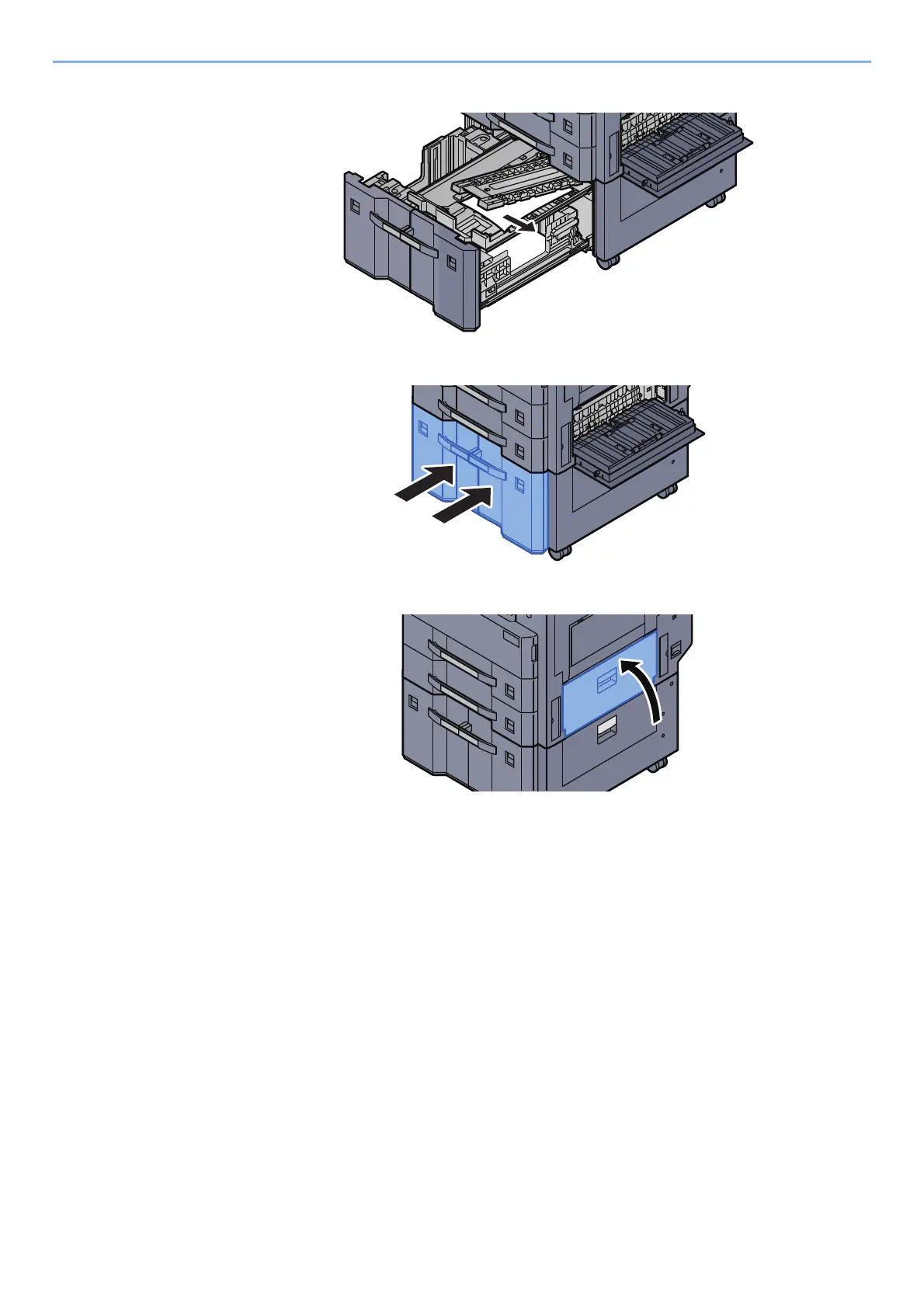

Remove any jammed paper.

Push paper feed unit, Cassette 3 and Cassette 4 back in.

Return the cover to the original position.
