Troubleshooting > Clearing Paper Jams

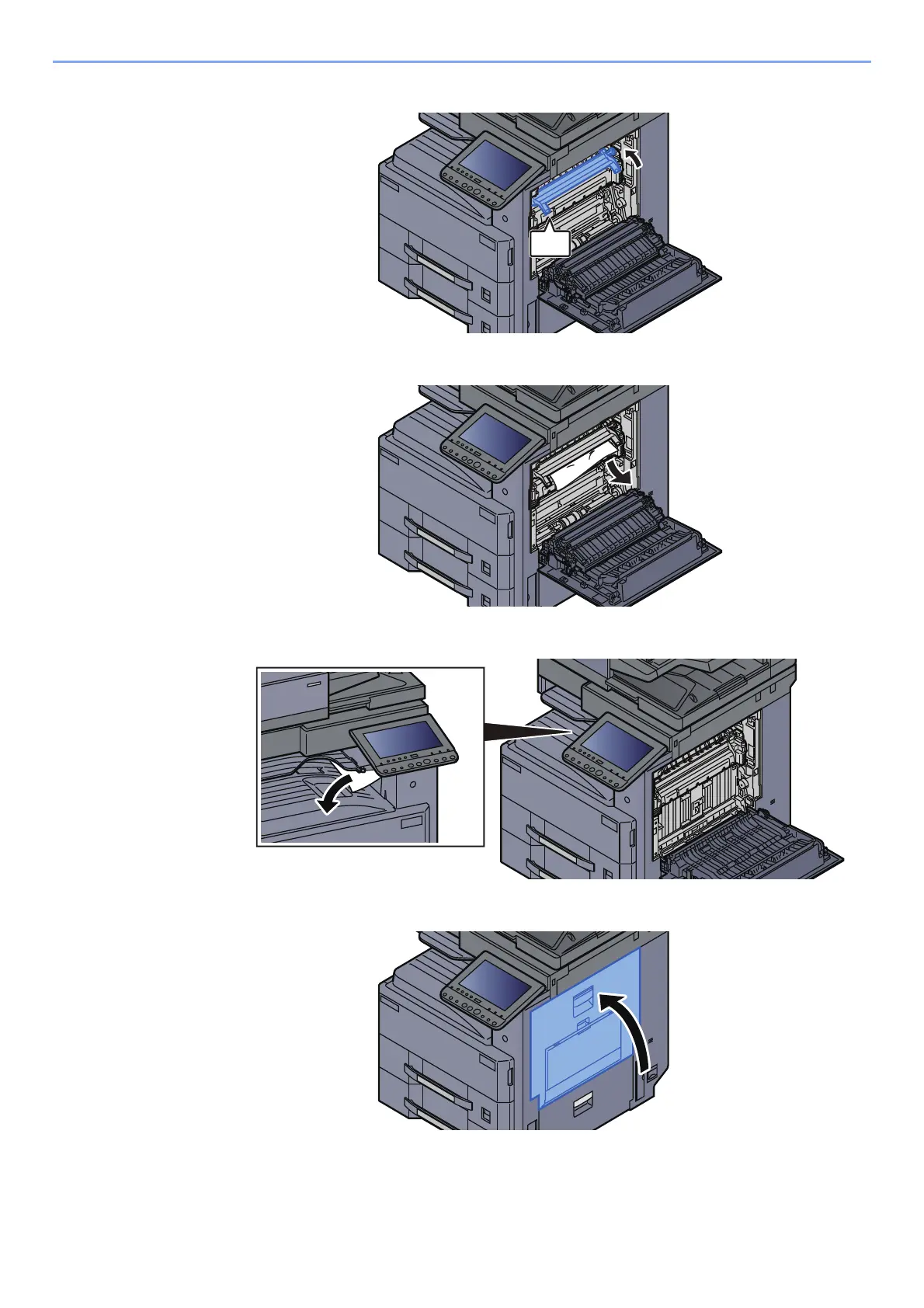

Open the fuser cover (a).

Remove any jammed paper.

Remove any paper from the paper ejection.

Return the cover to the original position.
