tau D749MA User Manual

3 D749MA

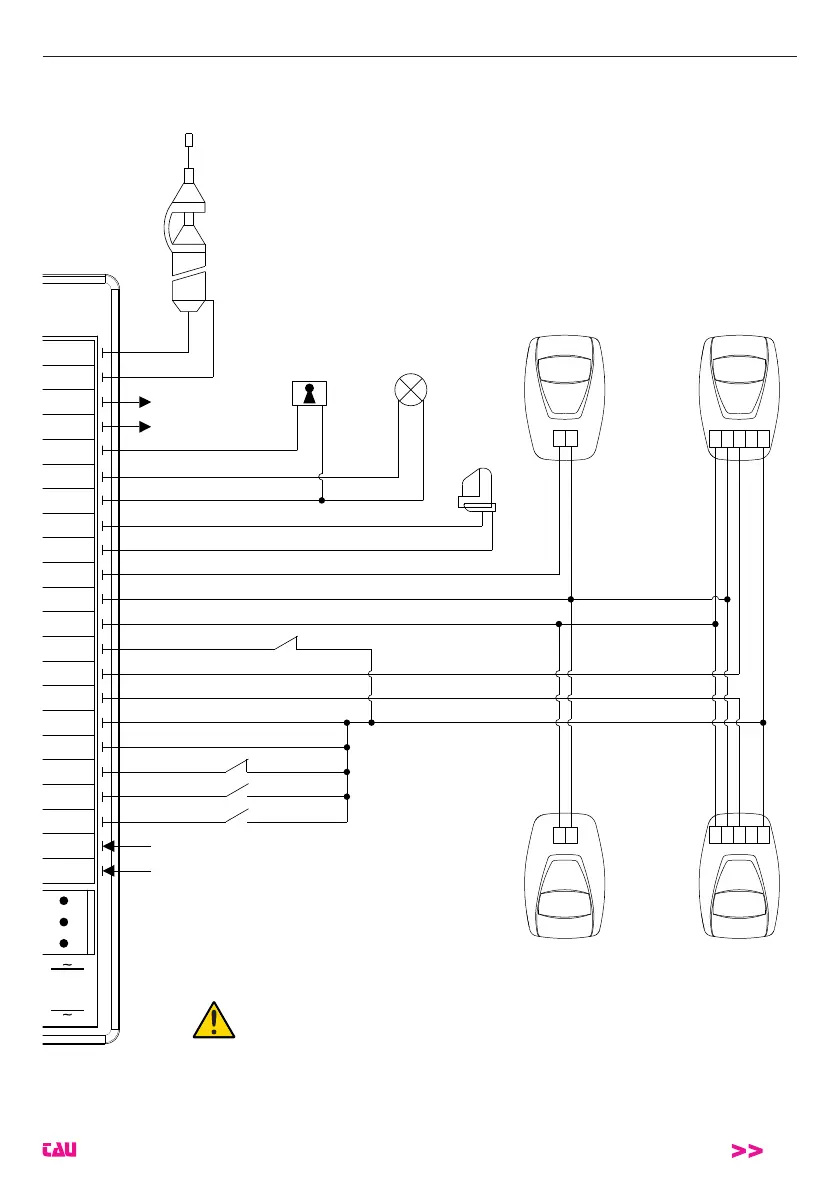

D749MA / SCHÉMA CÂBLAGE D749MA / ESQUEMA DEL CABLEADO D749MA
H2
PROG
H1
F3
2A
FS1
TRASF
FS2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Flashing
light
18V DC
max. 20W
Open/Close
-
+ 18 V
-
+ 18 V
-
Stop
Common
Common
Pedestrian
- Input aux
+ Input aux
Int. Photocell
Gate open
warning light
max. 3W
2nd radio
channel
Aerial
Fixed safety edge
-
+ 18 V
-
Ext. Photocell
Common
External
Photocells
RX
1 2 3 4 5
TX
1 2
-
+
BATT
J6
Internal
Photocells
RX
1 2 3 4 5
TX
1 2
E.L.
18V 15W
Morsetti 1 - 2: Attenzione a NON invertire la polarità
Terminals 1 – 2: Careful NOT to invert polarity.
Klemmen 1 - 2: Achtung: Nicht verpolen.
Etaux 1 - 2: Assurez-vous de NE PAS inverser la polarité.
Bornes 1 - 2: Tenga cuidado en NO invertir la polaridad.
Terminais 1 – 2: Cuidado NÂO inverter a polaridade.
