OPERATOR PARTS IDENTIFICATION
4-3
Models 702/741/772
Operator Parts Identification
4

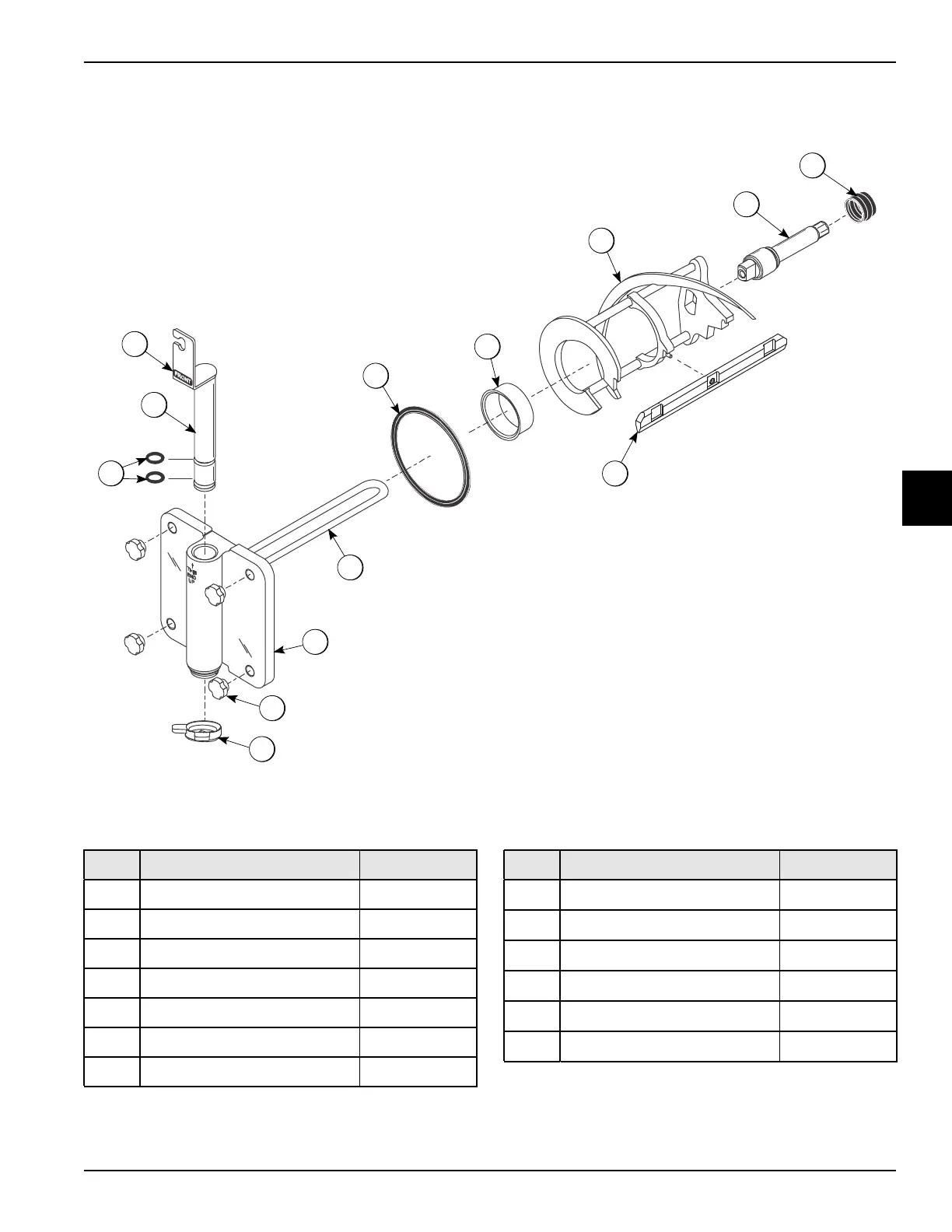

Model 702 Door Assembly
Figure 4-2
1
2
3
4
5
6
7
8
11a
11
10
9
12
Item Description Part No.
1 Seal-Drive Shaft 032560
2 Shaft-Beater 033498
3
Beater A.-4 QT. 1 Pin X49490
4 Bearing-Front 013116
5
Gasket-Door 5.177 ID 016672
6 Decal-Lift Plate Front 015200
7 Valve A.-Draw X13624-SP
Item Description Part No
8
O-ring - 1-1/16 OD x .139 W
084545
9
Cap-Design- 1.188” ID 6 PT
013139-6
10
Nut-Stud
021508
11
Door A.-1 Spout-4 QT.
X30269-SER
11a
Baffle A.-12 Inch
X30273
12
Blade-Scraper-Plastic
081094
