OPERATOR PARTS IDENTIFICATION
Models 702/741/772
Operator Parts Identification
4

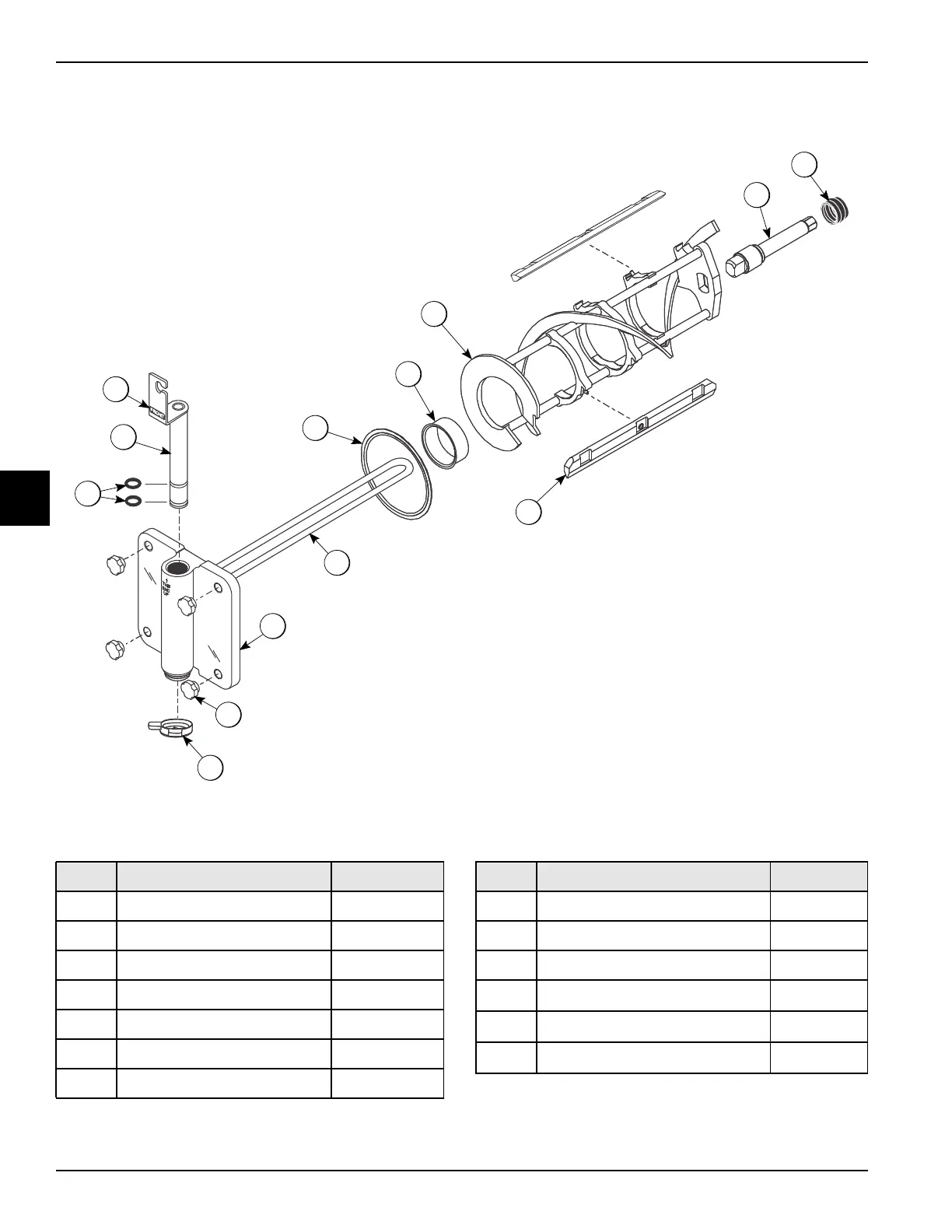

Model 741 & 772 Door Assembly
Figure 4-5
1
2
3
4
5
12
11a
11
10
9
6
7
8
Item Description Part No.
1 Seal-Drive Shaft 032560
2 Shaft-Beater 033498
3 Beater A.-7 QT. 1 Pin X46233
4 Bearing-Front 013116
5 Gasket-Door 5.177 ID 016672
6 Decal-Lift Plate Front 015200
7 Valve A.-Draw X13624-SP
Item Description Part No.
8 O-ring 1-1/16 OD X 139 W 084545-SER
9 Cap-Design-1.188” ID 6 PT 013139-6
10 Nut-Stud 021508
11
Door A.-1 Spout 7 QT. X30272-SER
11a
Baffle A.-19 Inch X30274
12
Blade-Scraper-Plastic 081094
To Next Page
