Section 5
5-1
Models 702/741/772
User Interface
5
User Interface

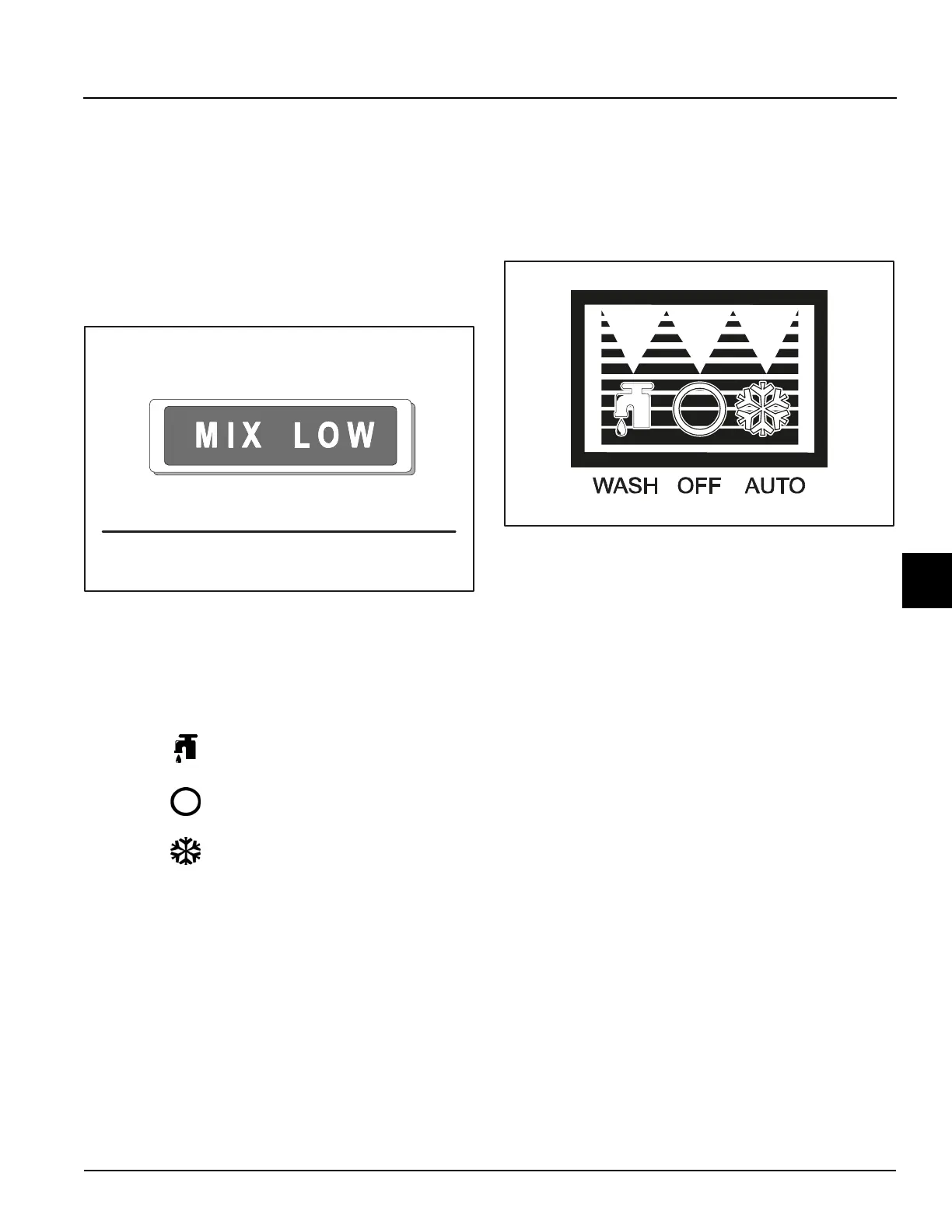

Indicator Light—MIX LOW
The Models 702, 741, and 772 are equipped with a MIX
LOW light located on the front of the machine. When the
light begins to flash, it indicates that the mix hopper has a
low supply of mix. At this time, the hopper should be filled
with mix. If you neglect to add mix when the light begins
to flash, eventual damage to the beater, blades, drive
shaft, and freezer door may occur.
Figure 5-1
Symbol Definitions
The following chart identifies the symbol definitions used
on the operator switches.
Control Switch
The center position is OFF. The right position is AUTO,
which activates the beater motor and the refrigeration
system. The left position is WASH, which activates the
beater motor only.
Figure 5-2
Reset Button
On a Model 702, the reset button is located under the left
upper side panel. On the Model 772 and the Model 741,
the reset button is located on the lower front panel.
The reset button protects the beater motor from an
overload condition. If an overload occurs, the reset
mechanism will trip. To properly reset the freezer, place
the control switch in the OFF position. Press the reset
button firmly. Place the control switch in the WASH
position and observe the freezer’s performance. Once
satisfied, place the control switch back in the AUTO
position.
= WASH keypad
= OFF keypad
= ON/AUTO keypad
13082
13083
