OPERATOR PARTS IDENTIFICATION
4-3
Models 8752, 8756, and 8757
Operator Parts Identification
4

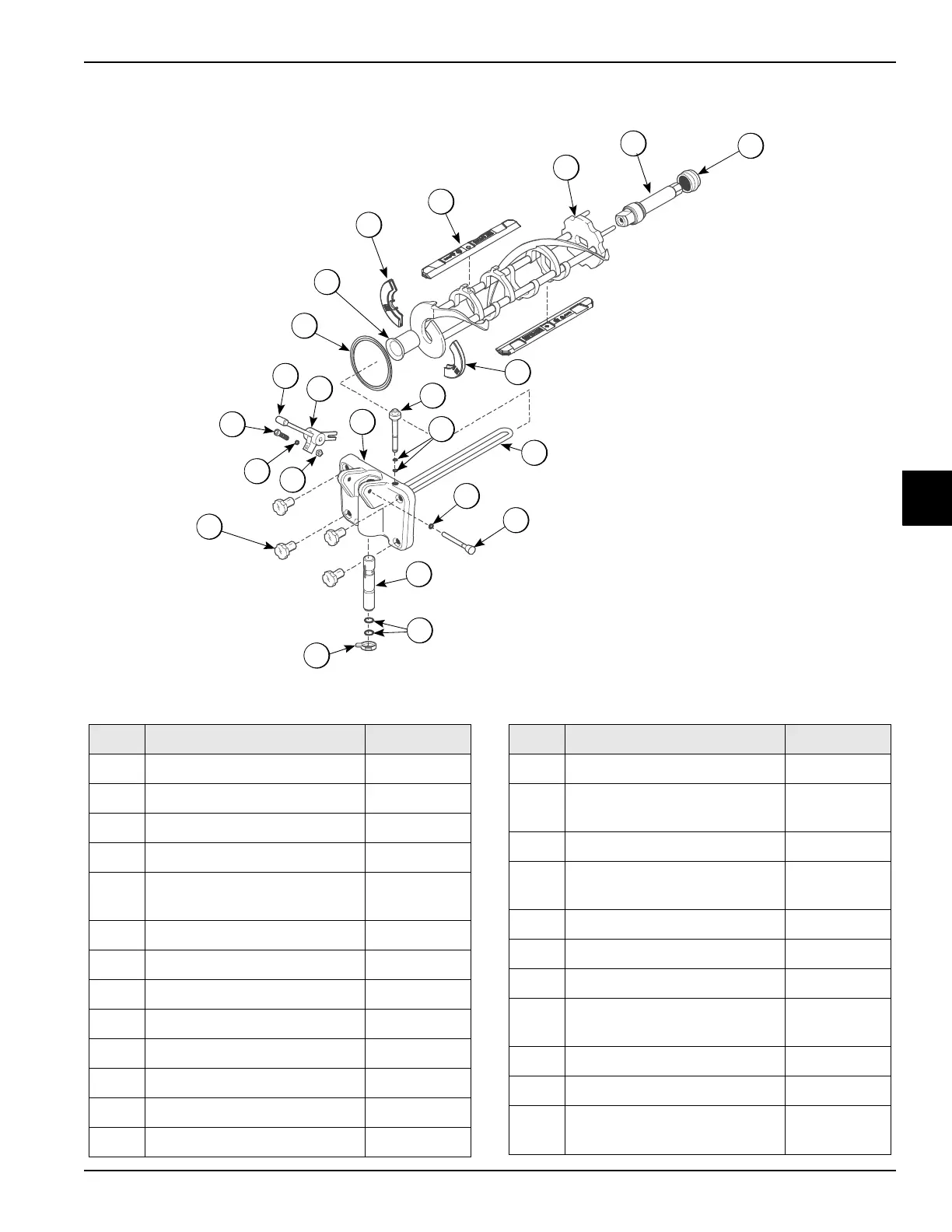

Model 8752 Beater Door Assembly
Figure 4-2
6
4
15
14
9
10
16
2
1
13
11
7
5a
5c
3
5b
12
8
8a
8b
8c
8d
7a
Item Description Part No.
1 Seal-Drive Shaft 032560
2 Shaft-Beater 032564
3 Beater A.-3.4QT-1 Pin X46231
4 Blade-Scraper-Plastic 084350
5 Kit A.-Beater-Front Shoes-Bear-
ing (5a-5c)
X50350
5a Shoe-Front Helix-Front 050347
5b Bearing-Front Shoe 050348
5c Shoe-Front Helix-Rear 050346
6 Gasket-Door HT 4”-Double 048926
7 Door A.-1 Spout X51531-10
7a Baffle A.-Log 4 in. X50882
8 Handle A.-Draw-Adj. (8a-8d) X55096
8a Handle-Adjustable 28804
Item Description Part No.
8b Screw-Adjustment 055092
8c O-ring-1/4 OD x .070W 50 Duro
(25 per bag)
015872
8d Nut-Jam 029639-BLK
9 O-ring-5/16 OD x .070W 
(50 per bag)
016272
10 Pin A.-Pivot X22820
11 Nut-Stud 021508
12 Valve A.-Draw X18303
13 O-ring-7/8 OD x .103W 
(100 per bag)
014402
14 Cap-Design-1.010” ID-6 Point 014218
15 Plug-Prime 028805
16 O-ring-3/8 OD x .070W 
(100 per bag)
016137
