Taylor 8752 Original Operating Instructions

OPERATING PROCEDURES
6-9
Models 8752, 8756, and 8757
Operating Procedures
6

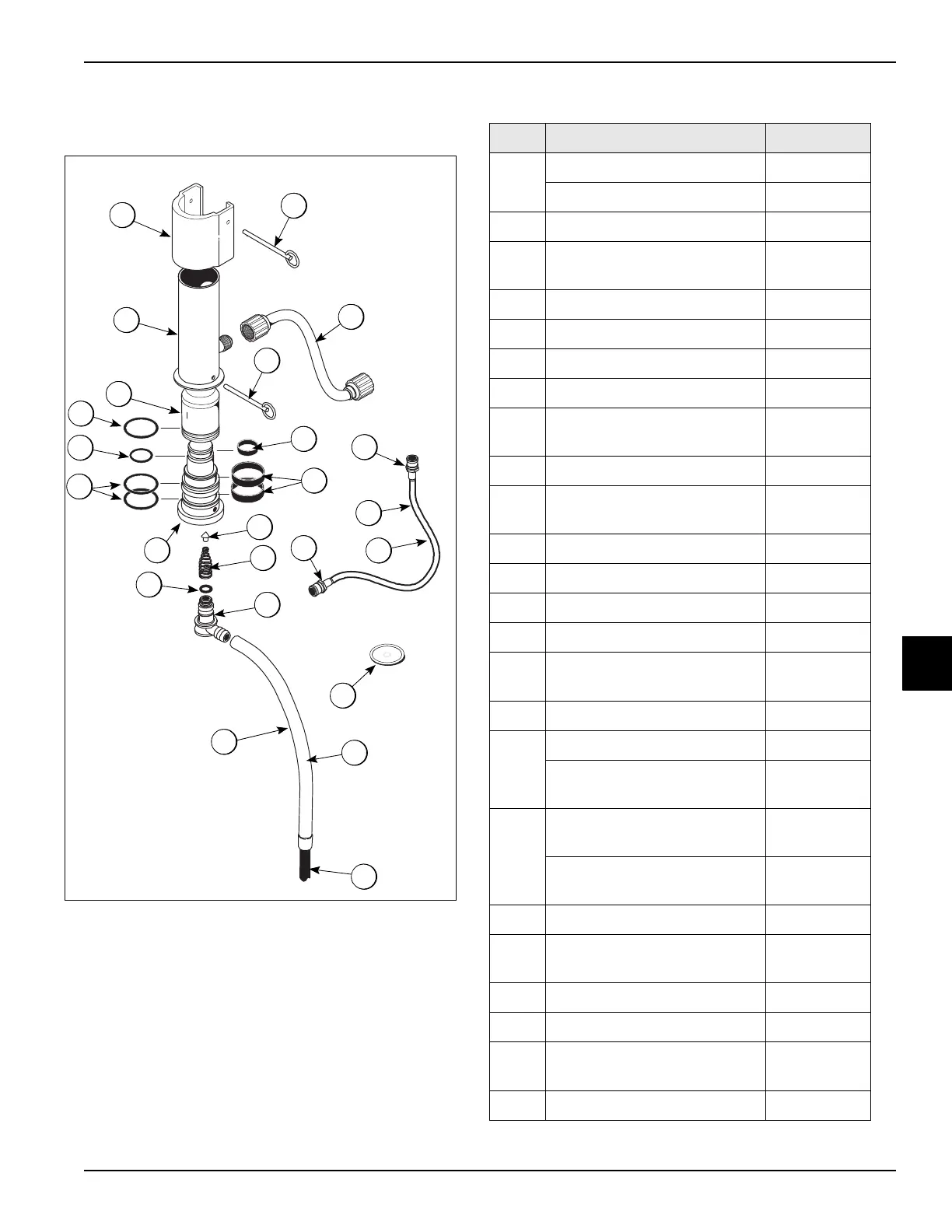

Air/Mix Pump Assembly Exploded
View
Figure 6-35
1
3a
5b
4
2
3c
3b
5a
5
7
6b
6c
6
6a
3h
3g
3i
3j
3f
3k
3d
3e
3l
3e
Item Description Part No.
1
Cap-Pump (8752) 023324
Cap-Pump (8756 and 8757) 021276-9
2 Pin-Retaining 021276-8
3 Pump A.-Soft Serve 
(Includes 3a- 3l)
X36201
3a Cylinder-Pump 022345-1
3b Pin-Retaining 021276-8
3c Piston 032733
3d Ring-Check 2 in. OD x 1/2 020050
3e
O-ring-2-1/8 OD x .139W 
(50 Per Bag)
020051
3f Body A.-Valve X36202
3g
O-ring-13/6 OD x .139W 
(50 Per Bag)
21278
3h Elbow-Inlet 90 Deg 022502-4
3i Spring-Tapered 1-7/8L 022456
3j Poppet-Rubber-Black 022473
3k Ring-Check 1-1/4 in. OD x 3/8 033215
3l
O-ring-1-3/8 OD x .103W-#23 
(50 Per Bag)
018664
4 Line A.-Flare 15” 038299
5
Tube A.-Suction 22” (8752) X20450
Tube A.-Suction 18” 
(8756 and 8757)
X37293
5a
Tube-Vinyl 5/8 ID x 1/8 Wall
(8752)
020945-22
Tube-Vinyl 5/8 ID x 1/8 Wall 
(8756 and 8757)
020945-18
5b Counterweight-Suction Tube 020452
6
Line A-Pump Pressure 
(Includes 6a-6c)
X27139
6a Socket-QD. 3/16 Barb 020021
6b Ferrule-3/8 OD Brass 030553
6c
Tube-Vinyl 3/16IDx5/16OD-100
(16”)
020940-16
7 Diaphragm-Pressure Switch 020249
