Section 4
4-1
Model C300
Operator Parts Identification
4
Operator Parts Identification

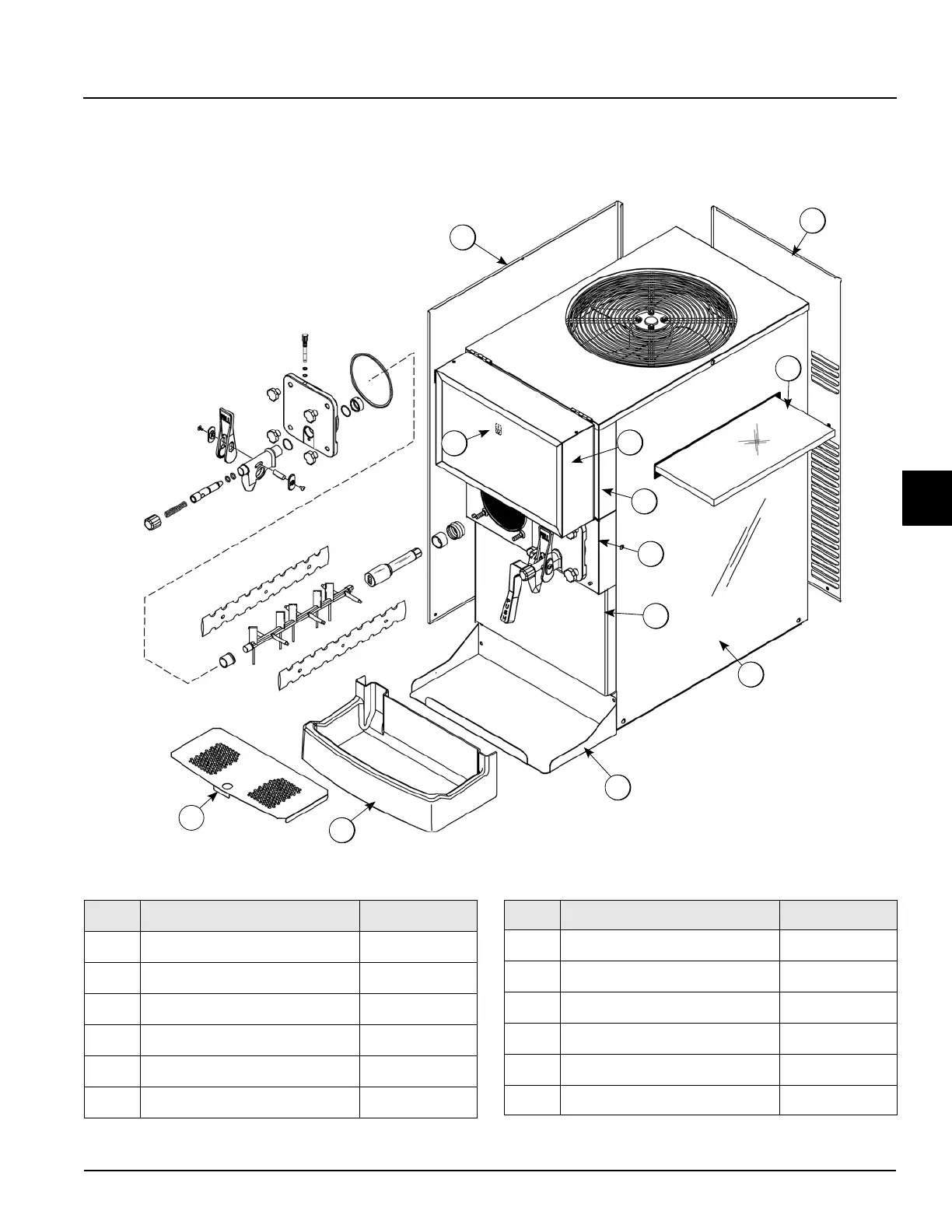

Exploded View
Figure 4-1
1
2
4
5
6
7
3
8
9
10
11
12
Item
Description
Part No.
1
Panel-Side-Le
ft
X54676- SER
2
Panel-Rear
054672
3
Panel-Side-Right
054671
4
Display-Lighted
069143
5
Panel-Front-Upper
069142
6
Panel-Front-Shell
054668
Item
Description
Part No.
7
Panel-Front-Lower
054670
8
Shelf-Drip Tr
ay
057938
9
Tray-Drip
057738
10
Shield-Splash
057939
11
Switch-Rocker-OFF-ON
078418
12
Filter- Air- 15.88LX15.88H
052779- 5
14
16
