OPERATOR PARTS IDENTIFICATION
Model C300
Operator Parts Identification
4

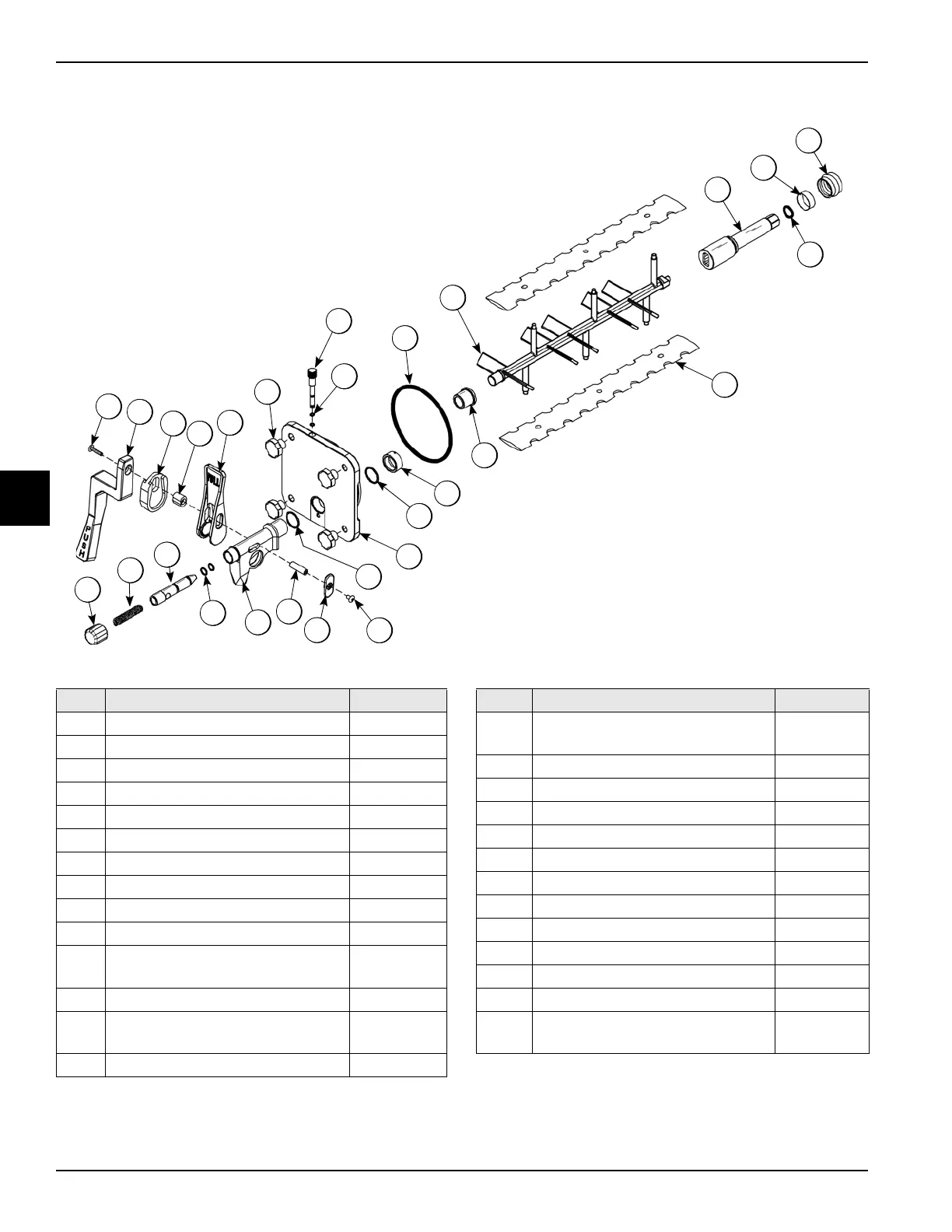

Beater Door Assembly
Figure 4-2
20
15
25
21
22
23
24
27
19
9
18
17
16
7
12
11
26
14
13
13
1
10
8
6
5
4
3
2
Item Description Part No.
1 Door A.- Freezer- Slush X80599
2 Cap- Spout- Door- FCB- BLK 046191- BLA
3 Spring- Comp.480X.072X3.0 039320
4 Valve- Draw- Door- Slush 039324
5 O-ring- 9/16 OD X .103W (25 to Bag) 016369
6 Spout- Door- FCB- Black 046190- BLA
7 Handle- Draw- FCB- Black 046192- BLA
8 Pin- Pivot- Spout- Door 039321
9 Slide- Handle- Door- FCB 046193- BLA
10 Screw- 10- 32X3/8 Phil 053869
11 O-ring- 9/32 OD X 1/16 Wall 
(25 to Bag)
029751
12 Plug- Prime- Slush 039568
13 O-ring- 1.129 ODX.989ID X.070W 
(25 to Bag)
039219
14 Nut- Spout- Door- Slush 039323
Item Description Part No.
15 O-ring- 5- 1/4O.D. X .210W 
(25 to Bag)
017003
16 Pin- Handle- ADA- FCB 068601
17 Adaptor- Mounting- ADA 068579
18 Handle- ADA- FCB 068580
19 Screw- 10/32X1” Phil Truss 069069
20 Nut- Stud 043666
21 Bushing- Beater Shaft/Boot Seal 042278
22 Bearing- Front- Slush 039349
23 Beater- Plastic- FCB 041182
24 Blade- Scraper- FCB 16L 041103
25 Shaft- Beater- Slush 083418
26 Seal- Drive Shaft 032560
27 O-ring- 7/8 OD X .139W 
(25 to Bag)
025307
