Section 6
6-1
Model C300
Operating Procedures
6
Operating Procedures
The Model C300 contains two 7 qt. (6.6 L) freezing
cylinders.
WARNING! This unit is pressurized when in
operation. The control switch must be in the OFF position
until the unit is completely assembled. No part should
ever be removed from the machine while it is in operation.
No parts should be removed until the control switch has
been turned to the OFF position.
•
DO NOT
allow untrained personnel to
operate this
machine.
• DO NOT operate the freezer unless all service panels
and access doors are restrained with screws.
• DO NOT remove any internal operating parts
(example: freezer door, beater, scraper blades, etc.)
unless all control switches are in the OFF position.
Failure to follow this instruction may result in severe
personal injury from hazardous moving parts or from the
impact of propelled parts.
The syrup flow control combines the two ingredients of
water and syrup and sends this combination to the
freezing cylinder. As product is drawn, new product will
flow from the flow control into the freezing cylinder. CO
2
is supplied after the flow control to carbonate the product
and aid in dispensing.
We begin our instructions at the point where the parts are
disassembled and laid out to air dry.
The following procedures will show you how to assemble
the parts into the freezer, sanitize them, and prime the
freezer with fresh product.
Duplicate the following procedures, where they apply, for
the other freezing cylinder.
If you are disassembling the machine for the first time or
need information to get to this starting point in our
instructions, turn to
“Disassembly” on page 6-12, and
start there.
Assembly
WARNING! Make sure the control switch is in
the OFF position to eliminate the chance of moving parts.
Failure to follow this instruction may result in severe
personal injury from hazardous moving parts.
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube HP).
1. Lubricate the o- ring groove. Slide the o- ring into the
groove on the drive shaft. Lubricate the drive shaft
seal groove, the o- ring, and the shaft portion that
comes in contact with the bearing on the beater drive
shaft. DO NOT lubricate the hex end of the drive
shaft.

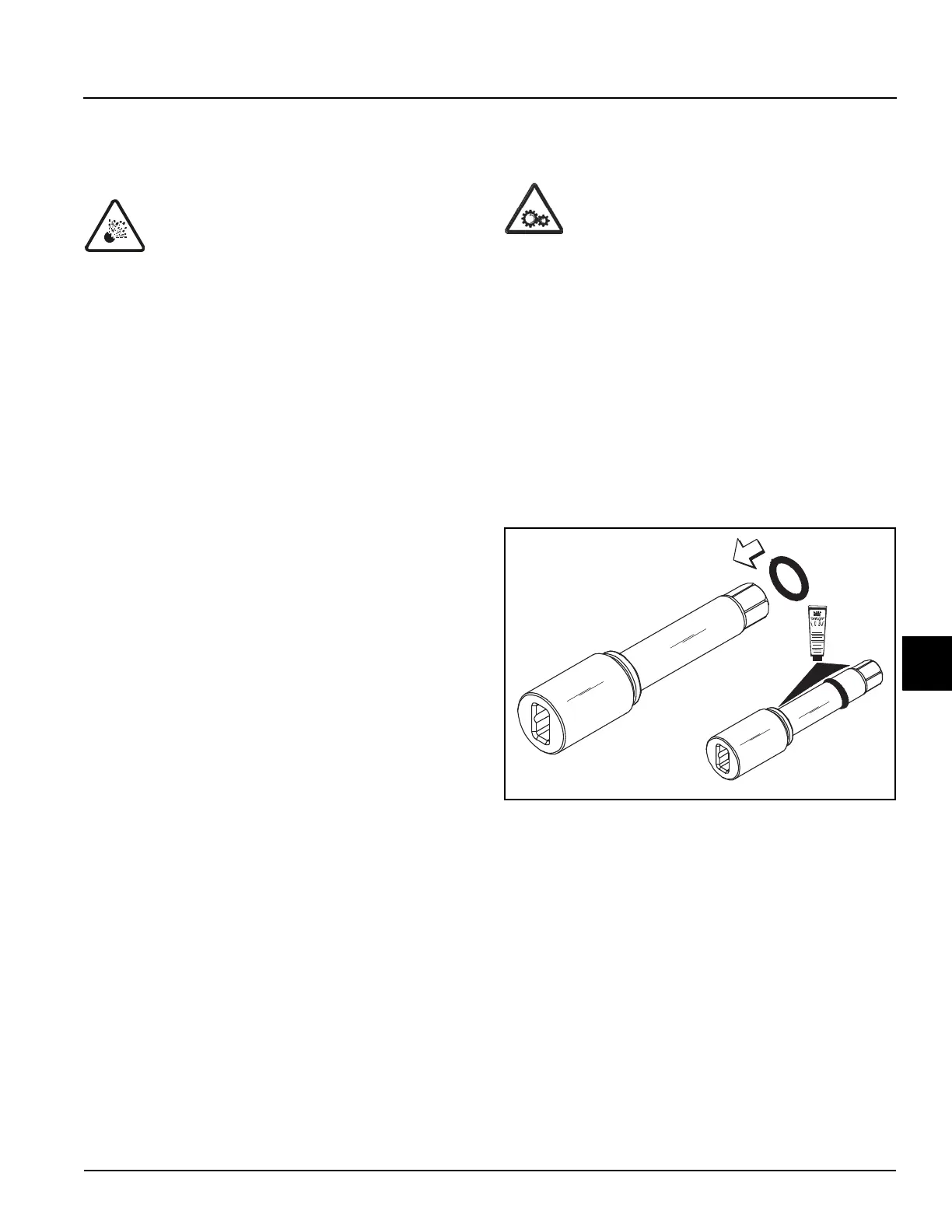

Figure 6-1
To Next Page
