Taylor C300 Operator's Manual

6-4
OPERATING PROCEDURES
Model C300
Operating Procedures
6

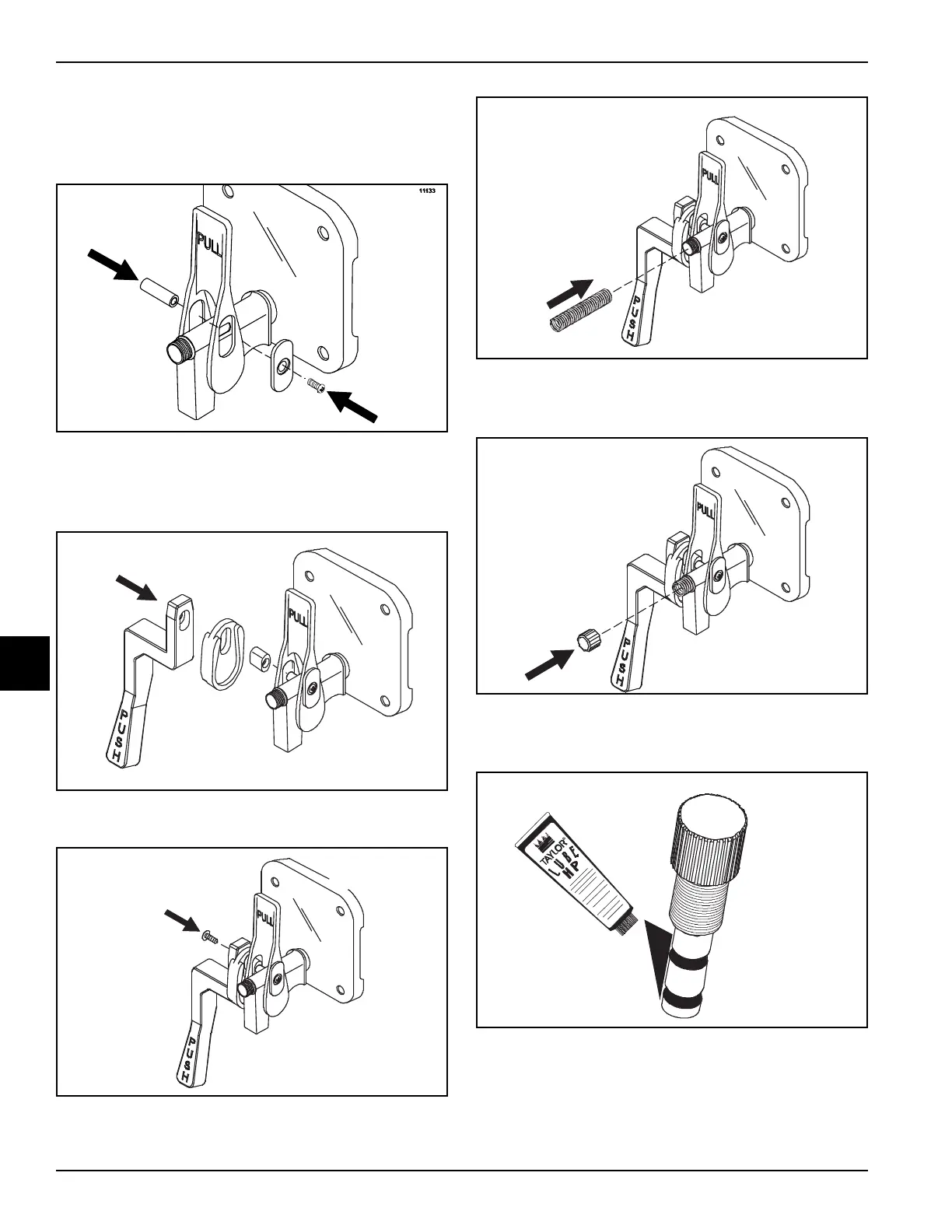

10. Slide the pivot pin through the draw handle and into
the draw valve. Place the draw handle slide over the
opening in the draw handle and the pivot pin. Secure
the assembly with the screw.
Figure 6-11
11. Install the handle pin through the mounting adaptor
and into the ADA handle. Mount the assembled ADA
handle onto the pivot pin.
Figure 6-12
12. Secure the assembly with the screw.
Figure 6-13
13. Insert the spring into the front of the door spout.
Figure 6-14
14. Place the threaded cap on the end of the draw valve
cavity. Turn the cap clockwise until it is secure.
Figure 6-15
15. Place the two O-rings on the prime plug and lightly
lubricate.
Figure 6-16
16. Install the prime plug.
11501
11445
11446
11447
11193
