6-2
OPERATING PROCEDURES
Models C709 & C717
Operating Procedures
6

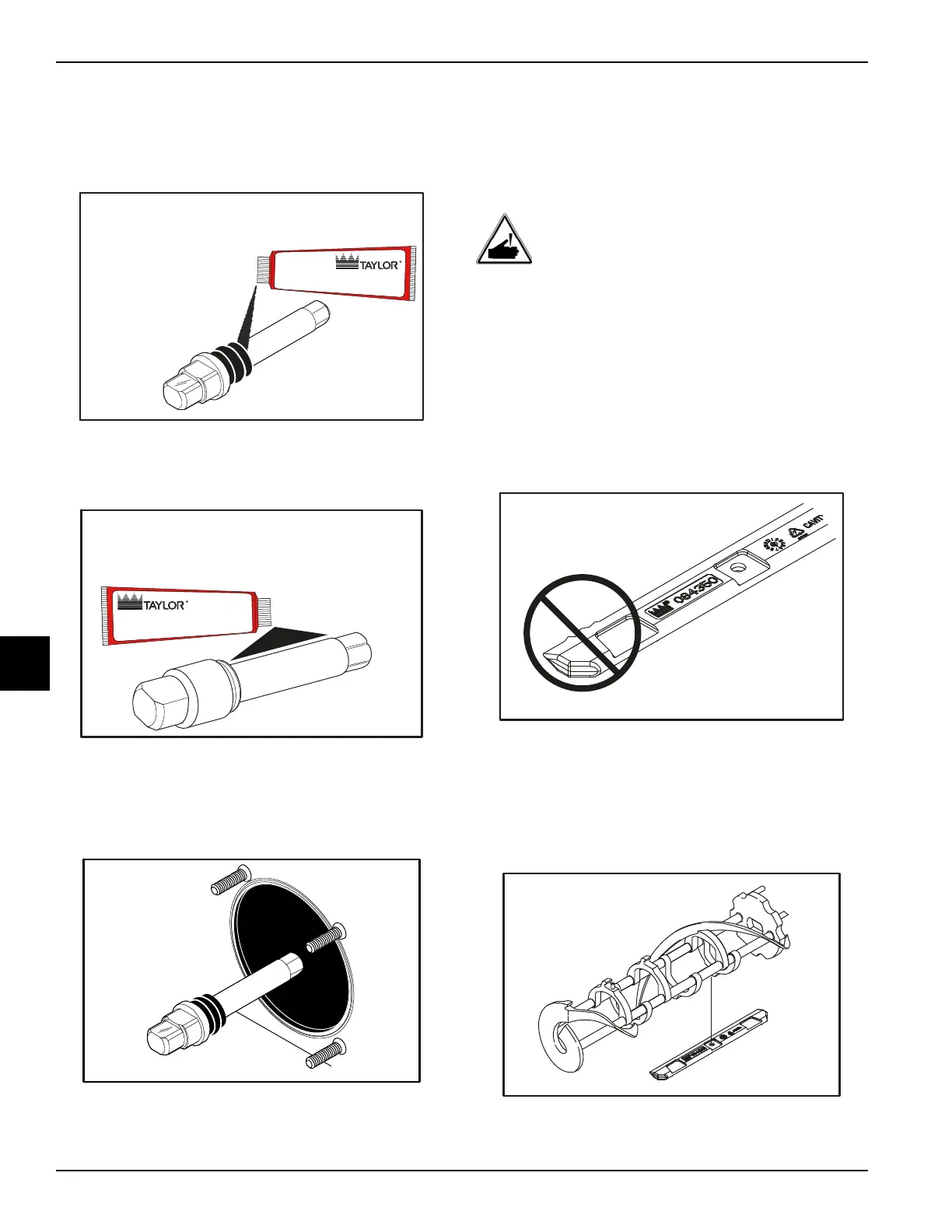

3. Heavily lubricate the inside portion of the driveshaft
seal and also lubricate the flat end of the seal that
comes in contact with the rear shell bearing.
(See Figure 6-4.)
Figure 6-4
4. Apply an even coat of lubricant to the shaft. Do not
lubricate the hex end. (
See Figure 6-5.)
Figure 6-5
5. Insert the beater driveshaft through the rear shell
bearing in the freezing cylinder and engage the hex
end firmly in the drive coupling.
Figure 6-6
Note: After inserting the driveshaft into the freezing
cylinder, use a single-service paper towel to remove
any excess lubricant that was displaced from the
driveshaft seal when it was installed onto the rear
shell bearing.
WARNING! Use extreme caution when
handling the beater assembly. The scraper blades are
very sharp and may cause injury.
6. Before installing the beater assembly, look down the
length of the parallel bars of the beater to make sure
the bars are straight with one another. If they are not
straight, the beater is bent and must be replaced.
Check the scraper blades for any signs of wear or
damage. If a scraper blade is nicked or worn, replace
both blades.
Figure 6-7
7. If the blades are in good condition, place the rear
scraper blade over the rear holding pin on the beater.
To prevent damage, make sure the hole on the
scraper blade fits securely over the pin.
(See Figure 6-8.)
Figure 6-8
11304
Apply the appropriate
Taylor approved food safe lubricant.
HP
11302
Apply the appropriate
Taylor approved food safe lubricant.
HP
