OPERATING PROCEDURES
6-7
Model C722
Operating Procedures
6

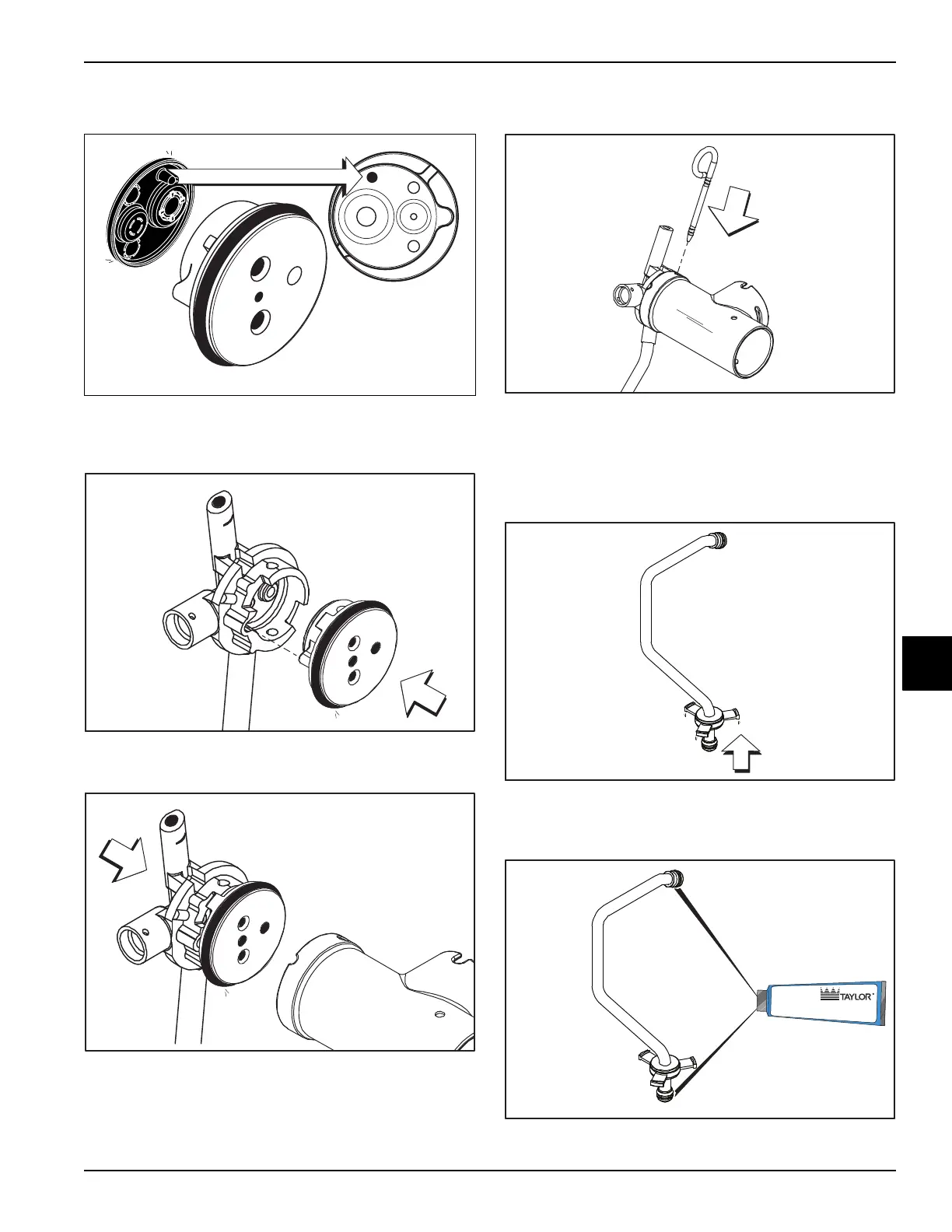

6. Slide the pump valve gasket into the holes on the
cap. Do not lubricate the gasket.
Figure 6-26
7. Insert the valve body cap into the hole in the mix inlet
adapter.
Figure 6-27
8. Insert the mix inlet assembly into the pump cylinder.
Figure 6-28
The adapter must be positioned into the notch
located at the end of the pump cylinder.
9. Secure the pump parts in position by sliding the
retaining pin through the cross holes located at one
end of the pump cylinder.
Figure 6-29
Note: The head of the retaining pin should be
located at the top of the pump when installed.
10. Assemble the feed tube assembly. Slide the check
ring into the groove of the feed tube.
Figure 6-30
11. Install one red O-ring on each end of the mix feed
tube, and thoroughly lubricate it.
Figure 6-31
15193
Apply the appropriate
Taylor approved food safe lubricant.
