USER INTERFACE
Model C722
User Interface
5
Symbol Definitions
To better communicate in the international arena,
symbols have replaced words on many of our operator
switches, function, and fault indicators. Your Taylor
machine is designed with these international symbols.
The following chart identifies the symbol definitions.
Power Switch
When placed in the ON position, the power switch allows
control panel operation.
Liquid Crystal Display
The Liquid Crystal Display (LCD) is located on the front
control panel. During normal operation, the display is
blank. The display is used to show menu options and
notify the operator if a fault is detected. On international
models, the display will indicate the temperature of the
mix in the hopper.
Indicator Lights
Mix Low—When the Mix Low symbol illuminates,
the mix hopper has a low supply of mix and should be
refilled as soon as possible.
Mix Out—When the Mix Out symbol illuminates,
the mix hopper is almost completely exhausted and has
an insufficient supply of mix to operate the freezer. At this
time, the Auto mode is locked out and the freezer will be
placed in the Standby mode. To initiate the refrigeration
system, add mix to the mix hopper and press the Auto
symbol
key. The freezer will automatically begin
operation.
Optional feature: Some freezers are equipped with rear
indicator lights.

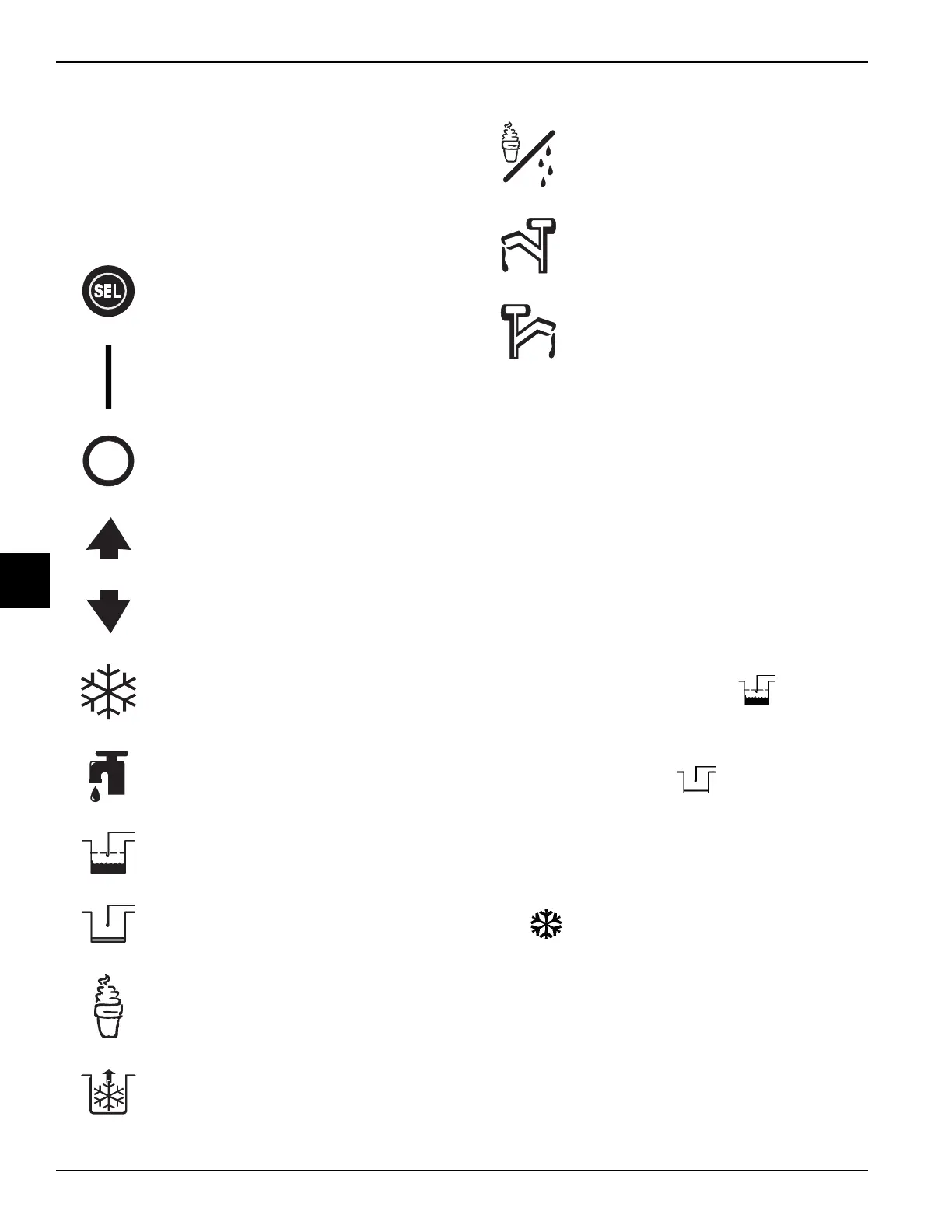

= Select
= ON
= OFF
= Up Arrow
= Down Arrow
= Auto
= Wash
= Mix Low
= Mix Out
= Menu Display
= Mix Pump
= Standby
= Topping Heater-Left
= Topping Heater-Right
