6-2
OPERATING PROCEDURES
Model C723
Operating Procedures
6
Figure 6-3
WARNING! Use extreme caution when
handling the beater assembly. The scraper blades are
very sharp and may cause injury.

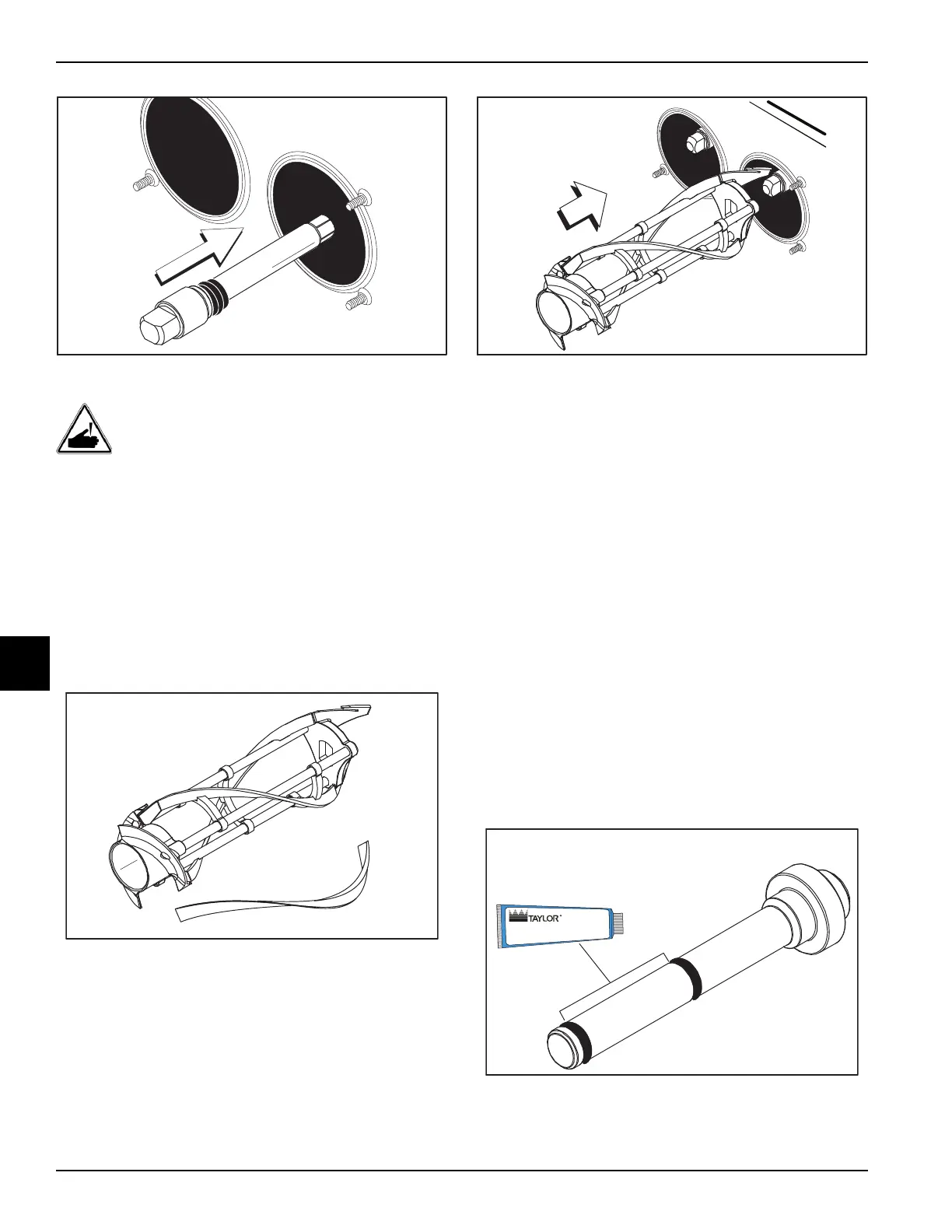

6. Before installing the beater assembly, check the
scraper blades. If they are in good condition, take
one of the scraper blades and slip it under the hook
at the front of the beater. Wrap the blade around the
beater, following the helix and pushing the blade
down onto the helix as you wrap. At the back end of
the beater, slip the blade under the hook.
Figure 6-4
7. Repeat this step for the second scraper blade.
8. Holding the beater securely, slide the beater into the
freezing cylinder about 1/3 of the way in. Looking into
the freezing cylinder, align the hole at the rear of the
beater with the flats on the end of the driveshaft.
Figure 6-5
9. Slide the beater the remainder of the way into the
freezing cylinder and over the end of the driveshaft.
The beater should fit snugly, but not so tightly that the
beater cannot be turned slightly to engage the
driveshaft.
10. Make sure the beater assembly is in position over the
driveshaft. Turn the beater slightly to make certain
that the beater is properly seated. When in position,
the beater will not protrude beyond the front of the
freezing cylinder.
11. Repeat these steps for the other side of the machine.
12. To assemble the freezer door, place the door gaskets
into the grooves on the back of the freezer door. Slide
the front bearings over the baffle rods. The flanged
edges should be against the door. Do not lubricate
the gaskets or bearings.
13. Slide the two O-rings into the grooves on each prime
plug. Apply an even coat of Taylor Lube to the
O-rings and shafts.
Figure 6-6
11468
Apply the appropriate
Taylor approved food safe lubricant.
To Next Page
