OPERATING PROCEDURES
6-3
Model C723
Operating Procedures
6

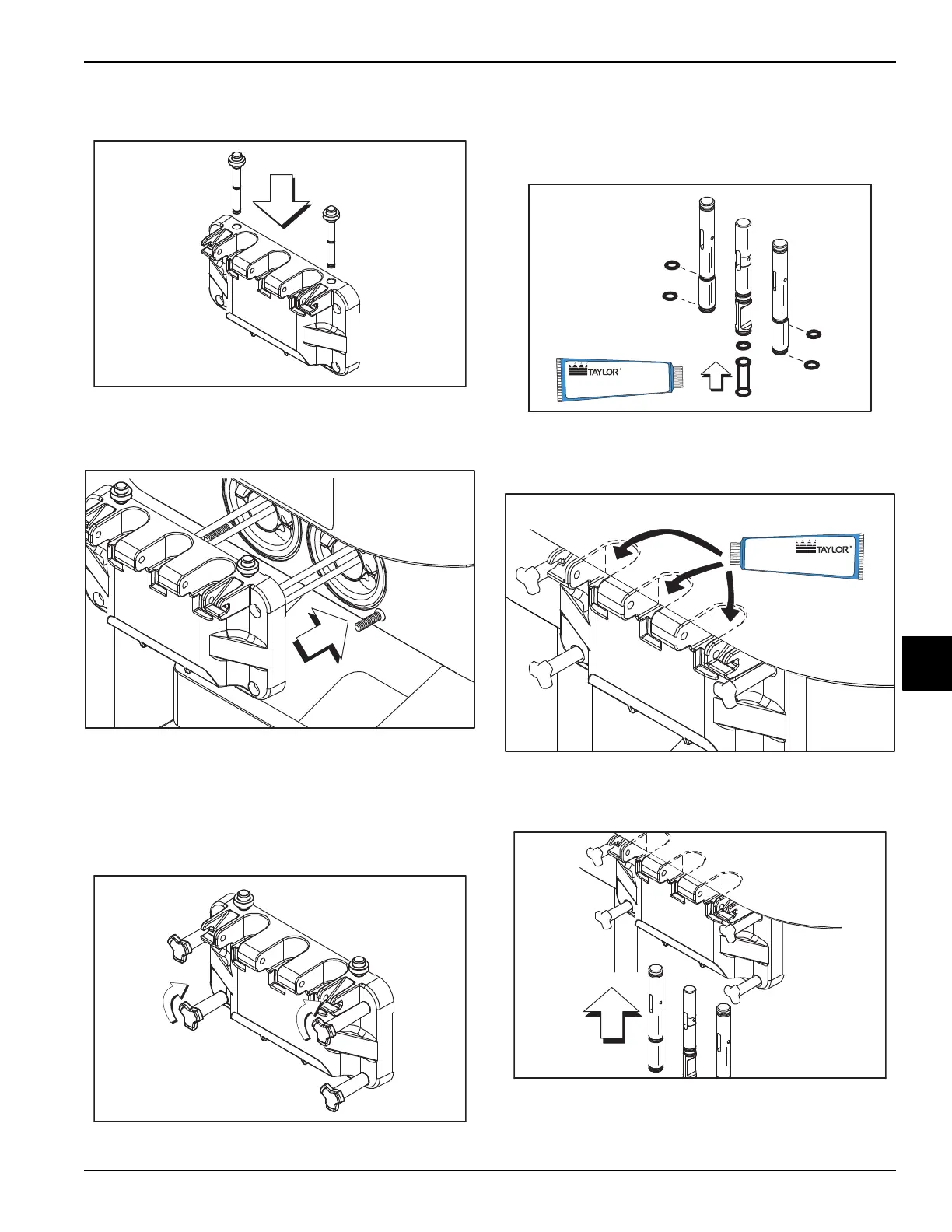

14. Insert the prime plugs into the holes in the top of the
freezer door and push down.
Figure 6-7
15. To install the freezer door, insert the baffle rods
through the beaters in the freezing cylinders.
Figure 6-8
16. With the door seated on the freezer studs, install the
handscrews. Use the long handscrews on the top
and the short handscrews on the bottom. Tighten
them equally in a crisscross pattern to ensure the
door is secure.
Figure 6-9
17. Slide the three O-rings into the grooves of each
standard draw valve. Slide the H-ring and O-ring into
the grooves of the center draw valve. Lubricate the
H-ring and O-rings.
Figure 6-10
18. Lubricate the inside of the freezer door spouts, top
and bottom.
Figure 6-11
19. Insert the draw valves from the bottom until the slot in
the draw valves come into view.
Figure 6-12
101551
Apply the appropriate
Taylor approved food safe lubricant.
10527
Apply the appropriate
Taylor approved food safe lubricant.
