6-4
OPERATING PROCEDURES
Model C723
Operating Procedures
6
20. Slide the fork of the draw handle into the slot of the
draw valve, starting from the right.

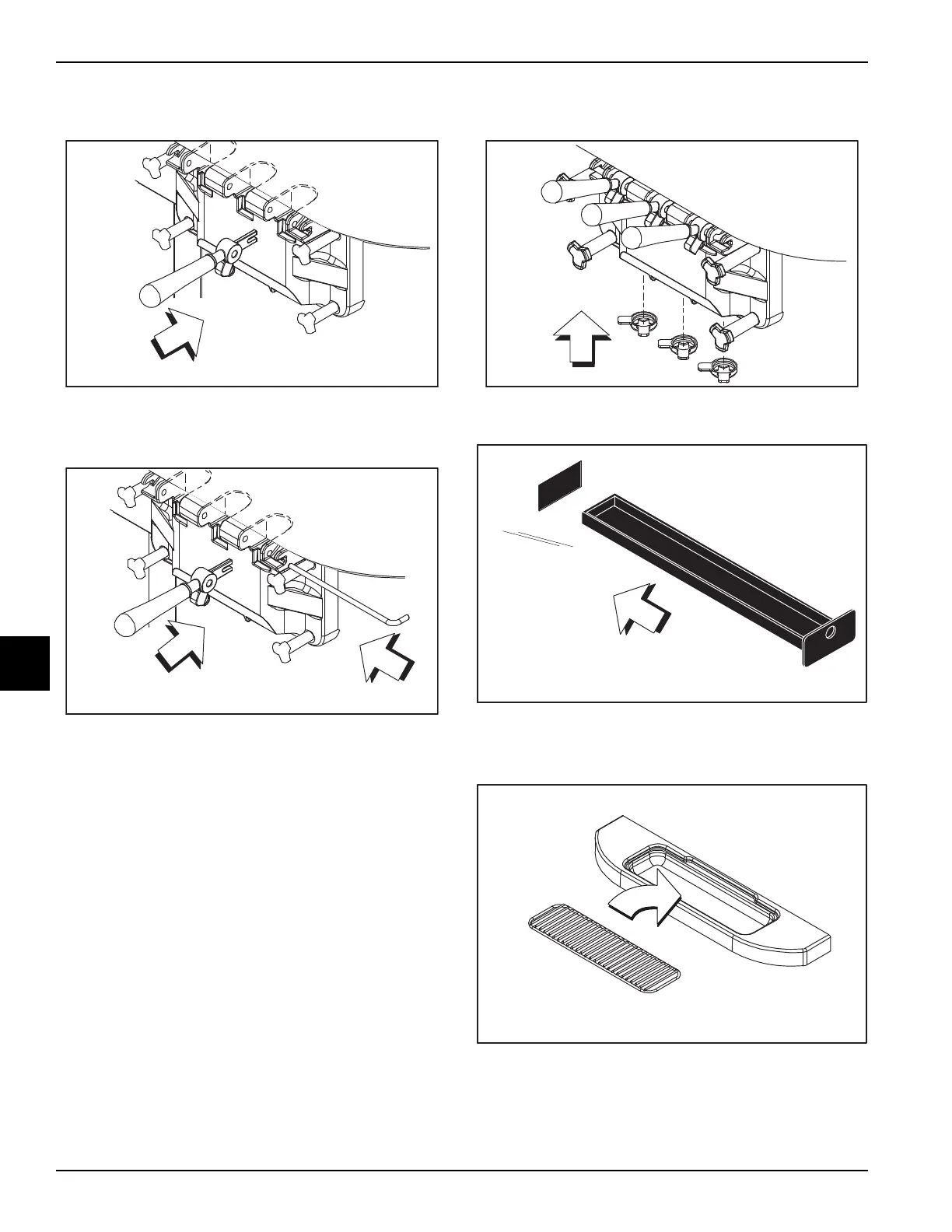

Figure 6-13
21. Slide the pivot pin through each draw handle as it is
inserted into the draw valves.
Figure 6-14
Note: This freezer features three adjustable draw
handles to provide portion control, giving a better
consistent quality to your product and controlling costs.
The draw handle should be adjusted to provide a flow
rate of 5 oz to 7-1/2 oz (148 ml to 222 ml) of product by
weight per 10 seconds.
22. To increase the flow rate, turn the adjustment screw
clockwise. Turn the adjustment screw
counterclockwise to decrease the flow rate.
23. Snap the design caps over the bottom of the door
spouts.
Figure 6-15
24. Slide the drip pan into the hole in the front panel.
\
Figure 6-16
25. Install the front drip tray and splash shield under the
door spouts.
Figure 6-17
