TC Electronic M5000 Service Manual

______________________________________________________________________________________________________________________________________________________________________________
____________________
TC Electronic A/S
M5000
Service manual
page
13
Disassembly procedure for Front section:
Make a backup of the user presets.
Disconnect power
Remove the top cover.
Unscrew 4 screws, 2 in each side of the front panel
Unscrew 1 little screw placed in the middle of the front panel.
Note the placement of the wires at the power switch and then disconnect the wires.
Remove the front panel.
UNDO
UTILITY
NAME
PROGRAM NUMBER
RAM
ROM
EDITEDFILE
ALGORITHM
TIMECODE
LOAD
MIDI IN
DIGITAL IN
LAN/SCSI
VIEWING ANGLE
-4236302418129 6 3 0
PROGRAM
EDITDO BYPASS
A B C D PROGRAM
PAGE
LEFT
RIGHT
dB
MEMORY CARD
ADA-1
DSP-1
DUM-1
DUM-1
STEREO AD/DA CONVERTERS
DSP REVERB ENGINE + DIGITAL I/O
EMPTY SLOT
EMPTY SLOT
DIGITAL AUDIO MAINFRAME
8888888
Remove
Remove
Remove
Remove
Remove

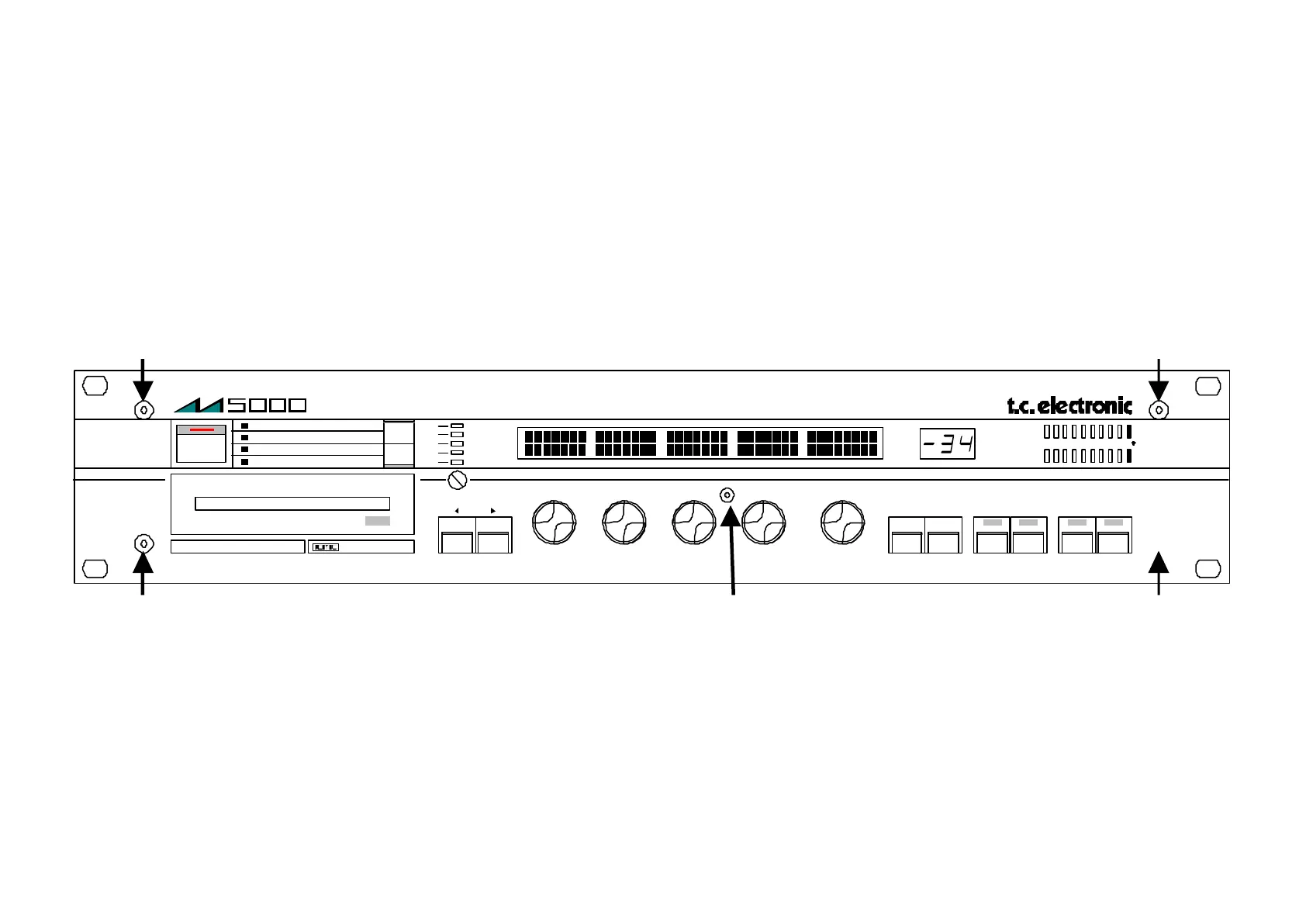

Fig. xx, Removing M5000 Front panel
