TC-Helicon Voicelive 2 User Manual

1. MIC and LINE inputs - Connect your microphone or
line level audio device’s output here. Only one should
be connected at a time. Hold the REVERB footswitch
to set gain when changing back and forth between MIC
and LINE ins.
2. GUITAR IN and THRU - Connect a guitar to the
GUITAR IN to guide harmony and mix the guitar signal
into the main output. Connect the THRU to your guitar
amp and remove the guitar from the main mix output.
3. AUX In - An audio signal received here can be mixed
into the main output or used to control harmony.
4. HEADPHONE Out - The main output is mirrored
here to drive headphones. Adjust the headphone
and main output volume with the OUTPUT setting
controlled by turning the MIX knobs.
5. OUTPUTS - The XLR and TRS (1/4”) produce
the same balanced audio output. Both can be used
simultaneously if required. Mono/Stereo configuration is
found in the I/O tab of the SETUP menu.
6. DIGITAL IN/OUT - The S/PDIF-formatted DIGITAL
OUT is always active. Selecting this DIGITAL IN instead

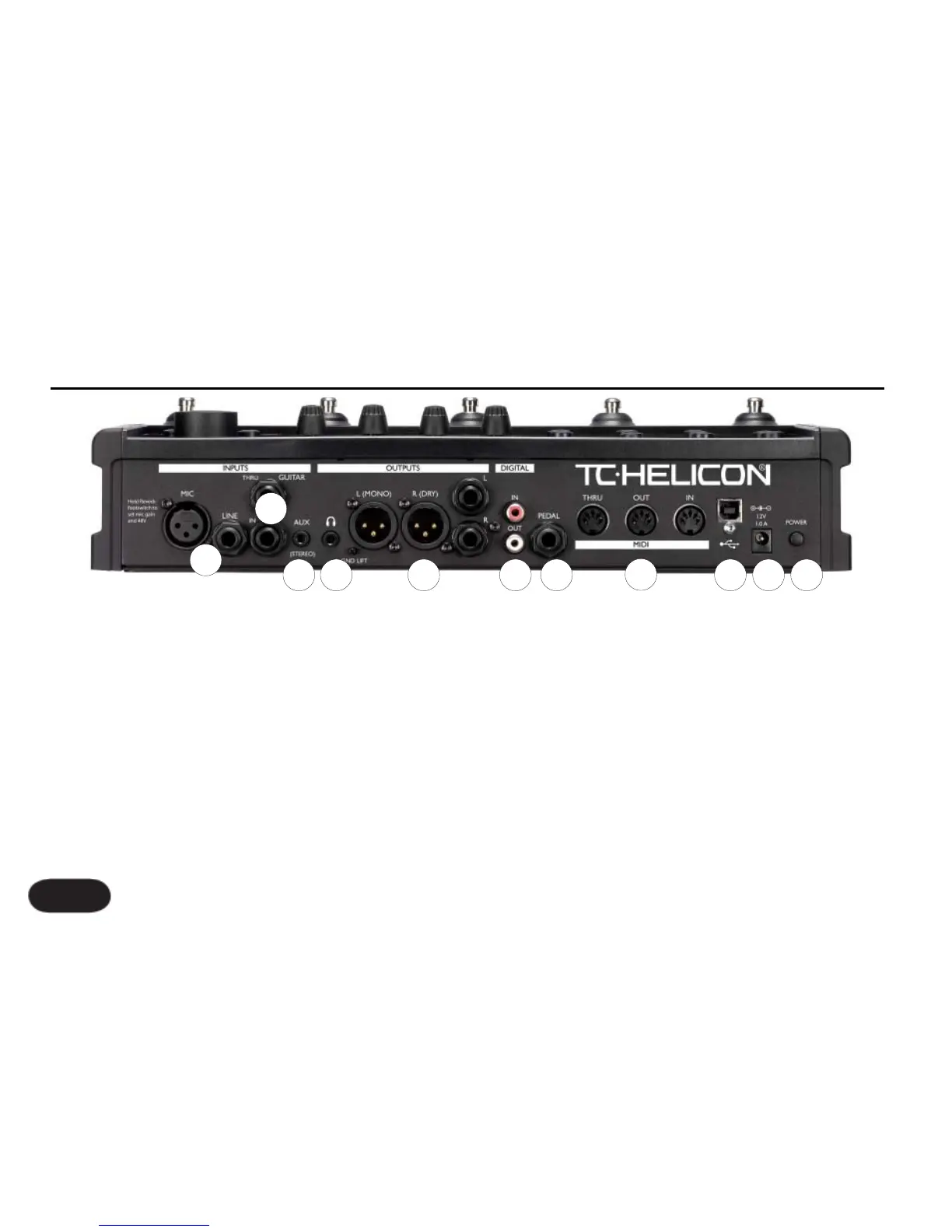

Back Panel
12
3 5 6 7
1
2
4
8
9
10 11

TC-Helicon Voicelive 2 Specifications

Operating Environment

operating temperature	32° F to 122° F (0° C to 50° C)
storage temperature	-22° F to 167° F (-30° C to 70° C)
humidity	Max. 90 % non-condensing

Power

external power supply mains voltage	100 to 240 VAC, 50 to 60 Hz
power consumption	<14 W

Analog Inputs

mic input impedance	2.14/1.07 kOhm
line input impedance	13/6.5 kOhm
guitar input impedance	1 MOhm

Analog Outputs

output impedance	100/50 Ohm
output range	16 dBu / 0dBu
dynamic range	> 109 dB, 20 Hz to 20 kHz

Weight and Dimensions

dimensions	13.8" x 3" x 8.5" (350 x 76 x 216)
weight	5 lb. (2.3 kg)
