Connection Guide
Out to P.A.
or DAW
Power In
Mic In
Aux In
Switch3 InPhones
USB

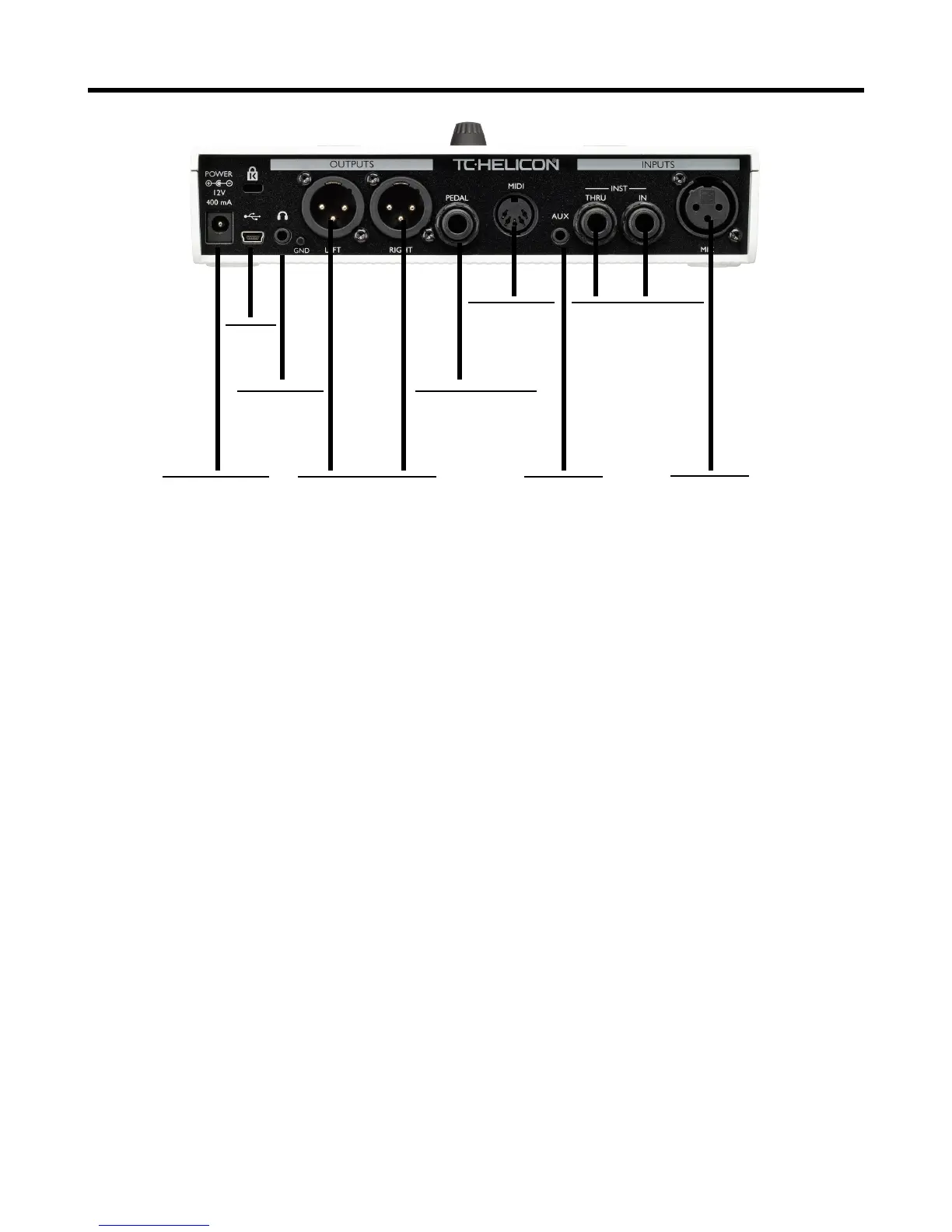

Power In - Connect the included power supply (ALWAYS USE A TC-HELICON POWER SUPPLY. USING
ANY OTHER POWER SUPPLY MAY DAMAGE THE UNIT AND WILL VOID YOUR WARRANTY.)
USB - Connect to your computer with the included cable. Use VoiceSupport to manage presets and up-
date Firmware. www.tc-helicon.com/products/voicesupport
Phones - Headphone output.
Le+Right - Main XLR outputs connect to your P.A. system or audio interface. Always use balanced
cables to avoid HUMMMMMMM.
Switch3 In - Use a TRS cable to connect a Switch 3, which can control looping. If you use the S3, you
have access to looping without pressing the Up and Down footswitches.
Aux In - Use a 1/8” cable to connect any music source you like, espcially the 8-Track from your 1974
Comet. When an input is detected here, Play will use the music to gure out Key/Scale info.
MIDI In - Connect a MIDI cable to your keyboard or computer to send Notes information for Harmo-
ny/Hardtune. Some CC’s are also available. (see Setup - MIDI for more info)
Inst IN/THRU - Connect a guitar or keyboard (audio not MIDI) to IN. To pass guitar signals to an
amplier and bypass internal guitar processing, connect a 1/4” cable to your guitar rig from the THRU
jack.
Mic In - is is where the magic happens. Plug your dynamic, condenser or MP-75 Mic in here. Re-
member to set the mic type and level, as described in the QuickStart Guide.
Inst In/Thru
MIDI In
To Next Page
