MFC Kit Instructions 5.0 PQconnect Option
27

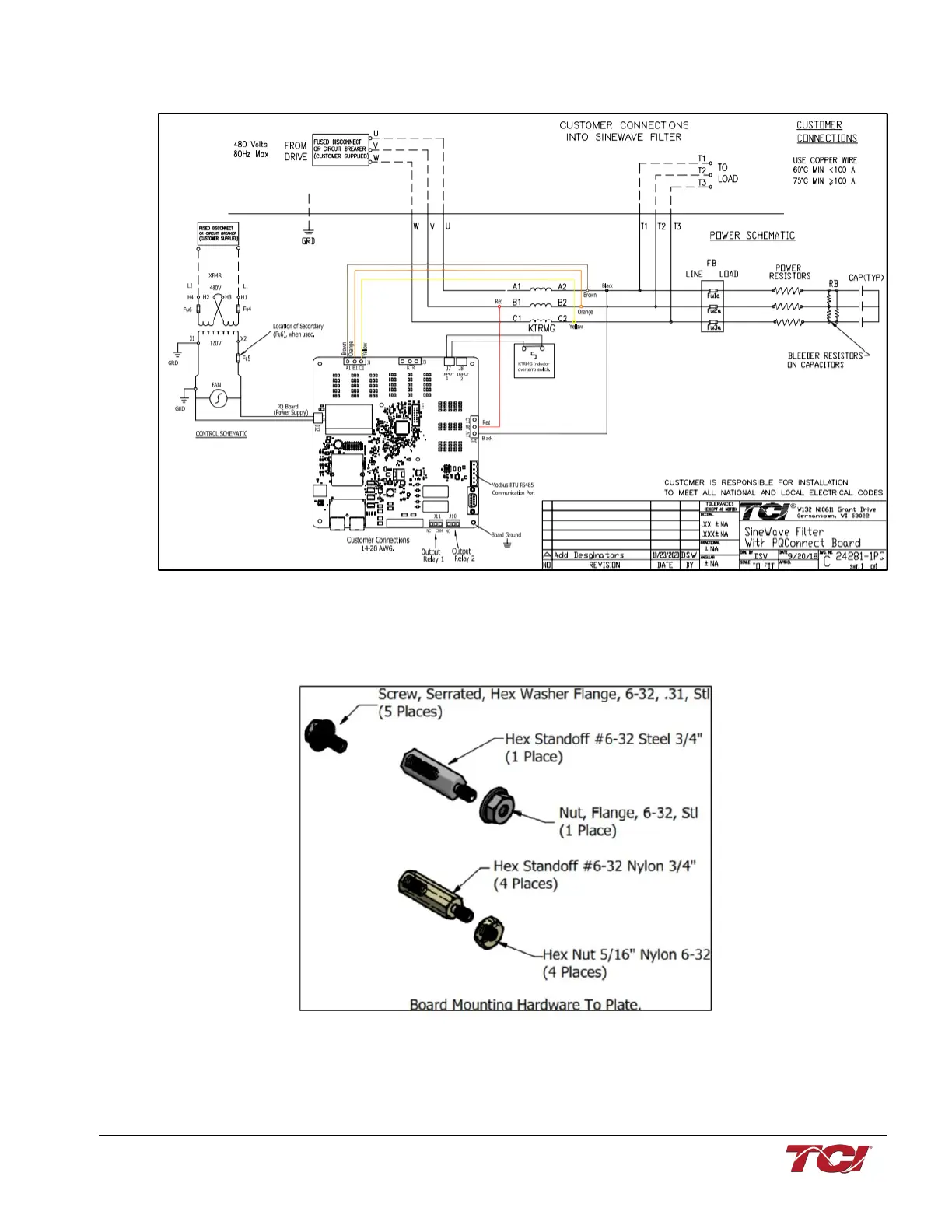

Figure 12: Typical MFC “P” Filter Kit Wiring
PCB Mounting Hardware
Figure 13 below shows the standoffs and screws provided with the kits to mount the board on the
bracket.
Figure 13: PCB mounting Hardware
