Connections and Setup

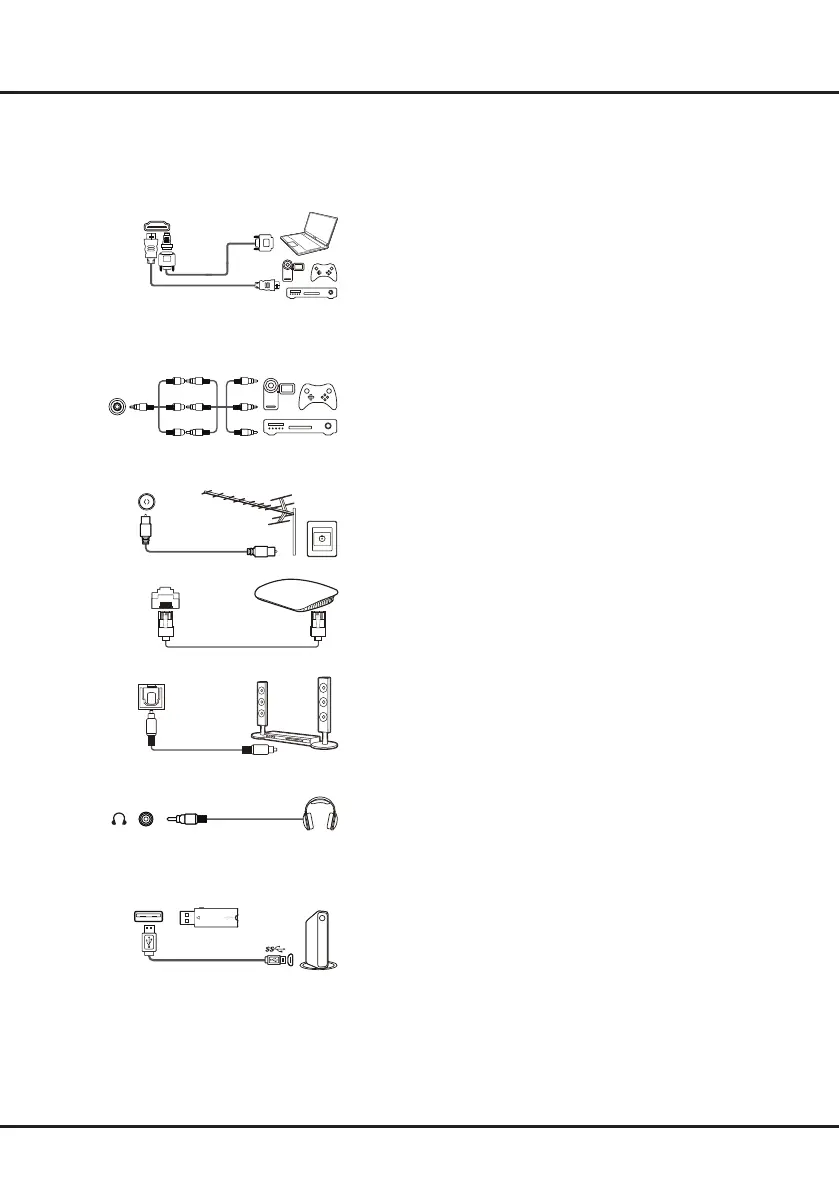

Sockets
Note: The location and names of the sockets on the TV may vary according to TV model, and not all sockets are
..........available on all models.
HDMI, HDMI(SERVICE) or HDMI(eARC/ARC) socket (input)
The HDMI (High-Denition Multimedia Interface) socket can be
used to connect a Blu-ray player, Games Console, PC with a
compatible video card installed, certain DVD players or a high-
denition compatible digital satellite decoder. This socket provides
an uncompressed digital connection that carries both video and
audio data by way of an integrated mini-plug cable.
AV IN adapter socket
The AV IN adapter socket can be used to connect the attached
AV adapter cable with VIDEO and AUDIO L & R IN sockets. The
AV IN sockets can be used to connect a range of equipment,
including video recorders, camcorders, decoders, satellite receivers,
DVD players, or games consoles. The VIDEO IN socket provides
composite video connection.
ANTENNA IN socket (input)
This socket can be used to connect an outside aerial.
LAN
RJ45 plug for connecting to external modem or network access
equipment.
DIGITAL AUDIO OUT (OPTICAL) socket
This socket can be used to connect a compatible digital audio
receiver.
Headphone socket (output)
This socket can be used to connect headphones or stereo
earphones.
Warning: Excessive sound pressure from earphones and
headphones can cause hearing loss.
USB2.0 socket (input)
The USB socket(s) can be used to connect a USB 2.0 device.
Note: The number of USB sockets on the TV may vary according to
TV model.
LAN
Router / Modem
AV IN
adapter
V L R
V L R
V L R
DIGITAL
AUDIO OUT
(OPTICAL)
HDMI
or HDMI
(SERVICE)
or HDMI
(eARC/ARC)
USB 2.0
HDD
ANTENNA IN
