Air Conditioner Service Manual
12

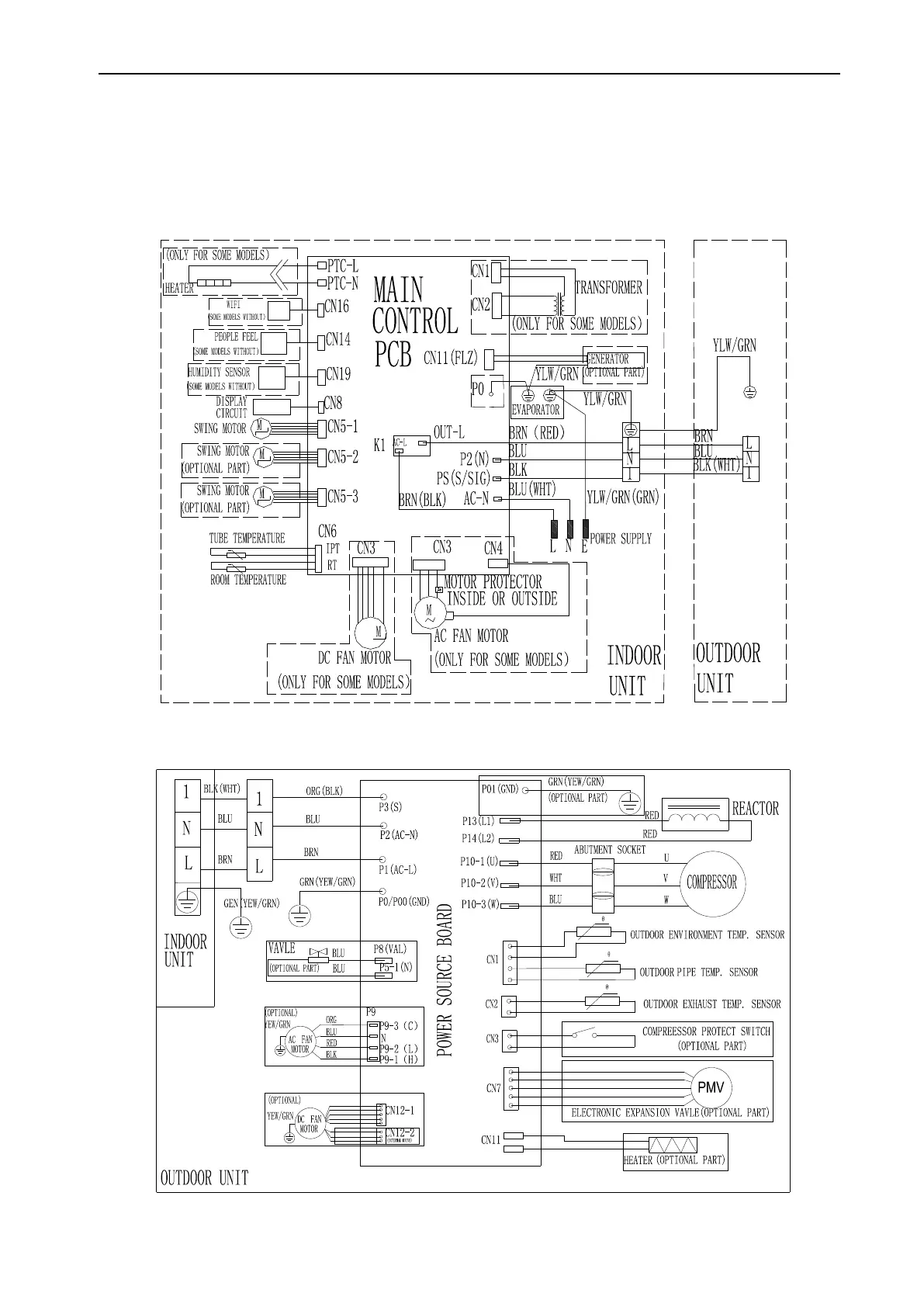

6. Wiring diagram
MODEL: TAC-09CHSA/XA71 INVERTER, TAC-12CHSA/XA71 INVERTER,
TAC-18CHSA/XA71 INVERTER
INDOOR UNIT:
OUTDOOR UNIT
