TCL TAC-09CHSA/XA71

Air Conditioner Service Manual
3

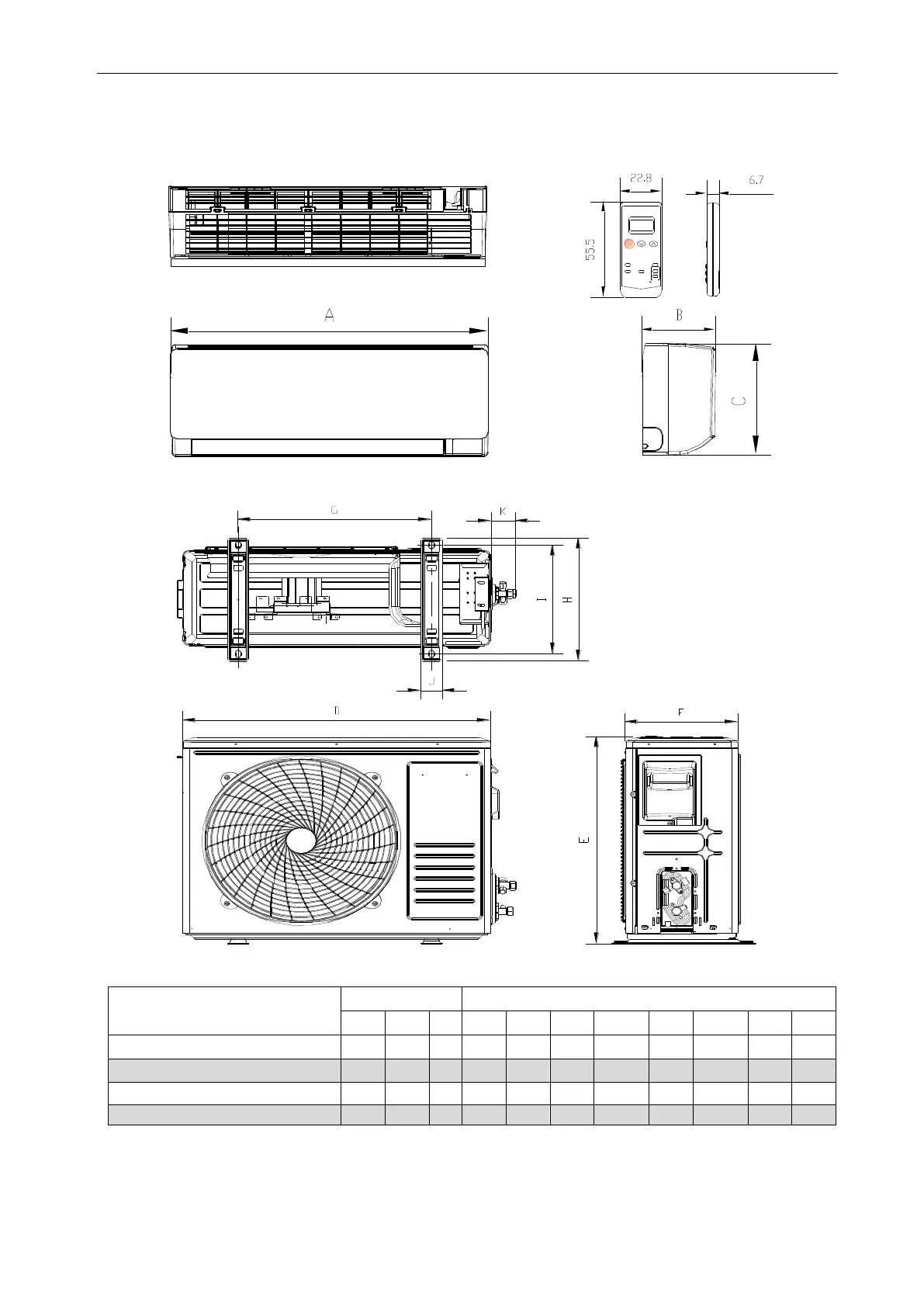

3. Product Dimensions
Indoor Unit:
Outdoor Unit:
Model
Indoor unit
Outdoor unit
A
B
C
D
E
F
G
H
I
J
K
TAC-09CHSA/XA71 INVERTER 698
255
190
700
550
256
439
302
277.8
48
55
TAC-12CHSA/XA71 INVERTER 777
250
205
700
550
256
439.2
302
277.8
48
55
TAC-18CHSA/XA71 INVERTER 910
292
205
760
550
256
439
302
277.8
48
55
TAC-24CHSA/XA71 INVERTER 1010
315
220
820
605
300
518
357
329
55
63
