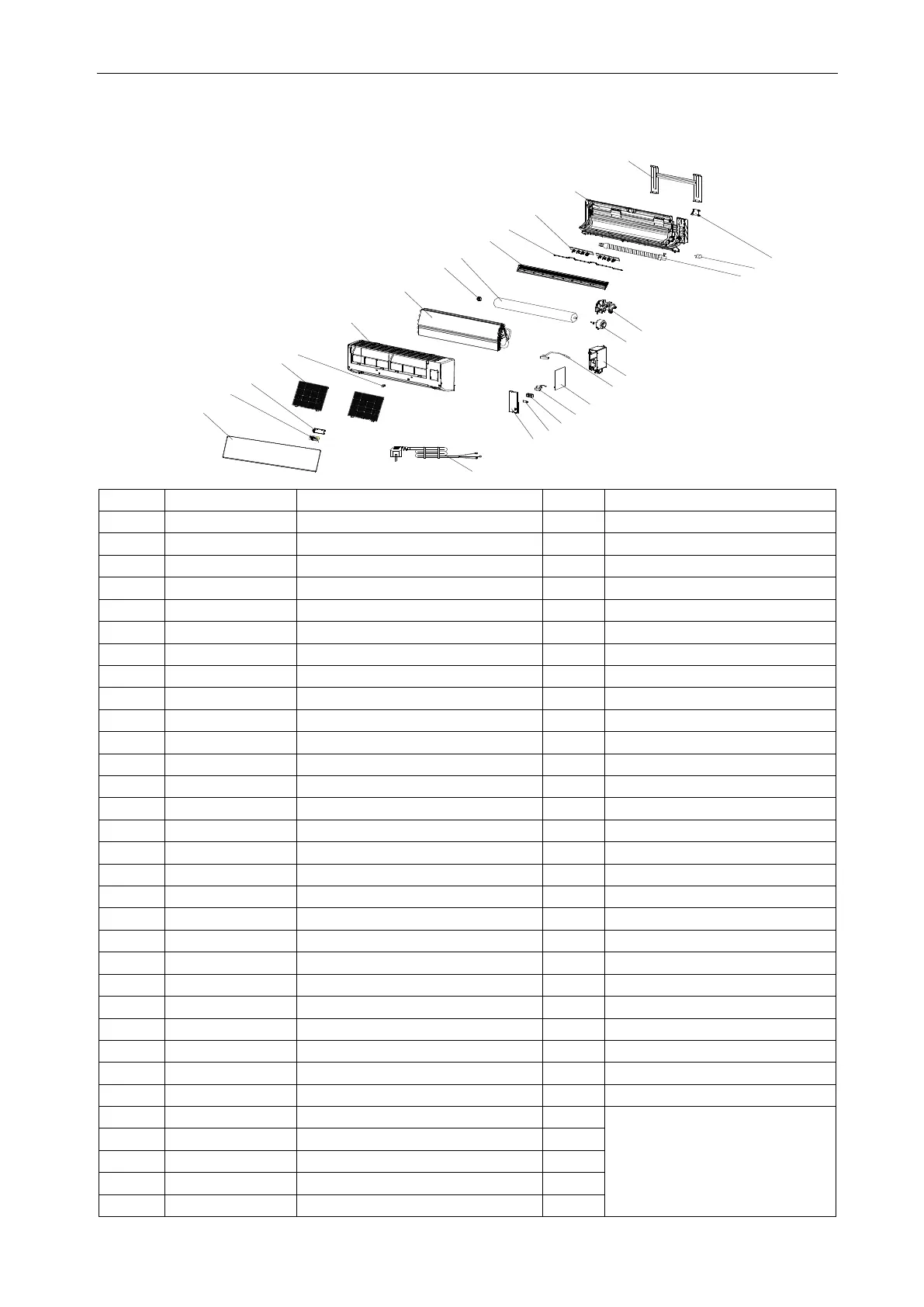

7. Explosion view and parts
Indoor Unit- TAC-09CHSA/XA71 INVERTER
No.
Part No.
Part Name
Q’ty
Remark
1
1080030003
Installation Plate
1
2
210738121C
Base
1
3
210738389
Vertical Vane Assembly
2
4
210738431
Vertical Vane Connector
1
5
210738122
Vane
1
6
210738131
Cross Fan
1
7
1070100010
Bearing Mount
1
8
211238000
Evaporator
1
9
210738120
Face Frame
1
10
210701846
Screw Cover
1
11
210738433
Air Filter
2
12
210705767
Display PCB Box
1
13
210901127S
Display PCB
1
14
210755448
Front Panel
1
15
1170120044
Power Supply Cord
1
16
210738393
Electrical Box Cover
1
17
210736832
Cable Clamp
1
18
210900478A
Terminal
1
19
210901224
Transformer
1
20
210901714U
Main PCB
1
21
210900333
Indoor Sensor Assembly
1
22
210736831
Electrical Box
1
23
1170030067G
Indoor Motor
1
24
210737653
Indoor Motor Cover
1
25
210737091
Drainage Hose
1
26
1170020011
Vane Motor
1
27
210736813
In And Out Pipe Fixer
1
28
210901289T
Remote Controller
1
Not shown in Explosion view
29
210737935
Remote Controller Supporter
1
30
211383817T
Indoor Carton
1
31
211383465
Left Foaming
1
32
211383466
Right Foaming
1
20
21
19
18
17
14
13
12
11
10
9
8
7
6
5
4
3
2
1
22
23
24
15
16
25
26
27
