TCL TAC-09CHSA/XA71

Air Conditioner Service Manual
15

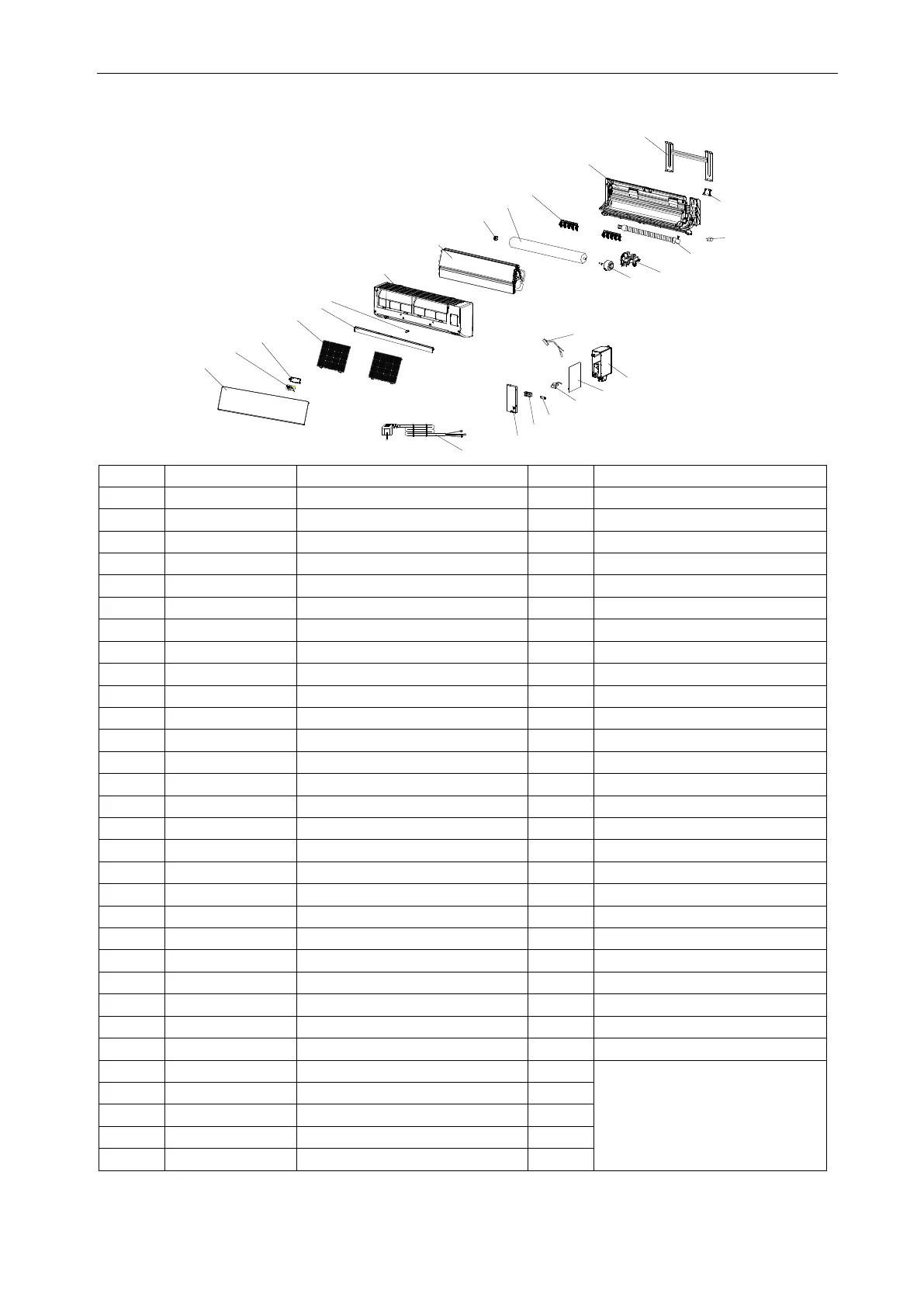

Indoor Unit- TAC-12CHSA/XA71 INVERTER
No.
Part No.
Part Name
Q’ty
Remark
1
210838031
Installation Plate
1
2
210755108F
Base
1
3
210701880
Vertical Vane Assembly
2
4
210737655
Cross Fan
1
5
1070100010
Bearing Mount
1
6
211237323B
Evaporator
1
7
210755110
Face Frame
1
8
210701846
Screw Cover
1
9
210737659
Vane
1
10
210701863
Air Filter
2
11
210705767
Display PCB Box
1
12
210901127S
Display PCB
1
13
210755449
Front Panel
1
14
1170120045AC
Power Supply Cord
1
15
210737654
Electrical Box Cover
1
16
210900478A
Terminal
1
17
210736832
Cable Clamp
1
18
210901224
Transformer
1
19
210901714AQ
Main PCB
1
20
210736831
Electrical Box
1
21
210900333
Indoor Sensor Assembly
1
22
1170030067G
Indoor Motor
1
23
210737653
Indoor Motor Cover
1
24
210737091
Drainage Hose
1
25
1170020011
Vane Motor
1
26
210736813
In And Out Pipe Fixer
1
27
210901289T
Remote Controller
1
Not shown in Explosion view
28
210737935
Remote Controller Supporter
1
29
211386678W
Indoor Carton
1
30
211386186
Left Foaming
1
31
211386187
Right Foaming
1
22
23
25
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
24
20
26
21
