Air Conditioner Service Manual
16

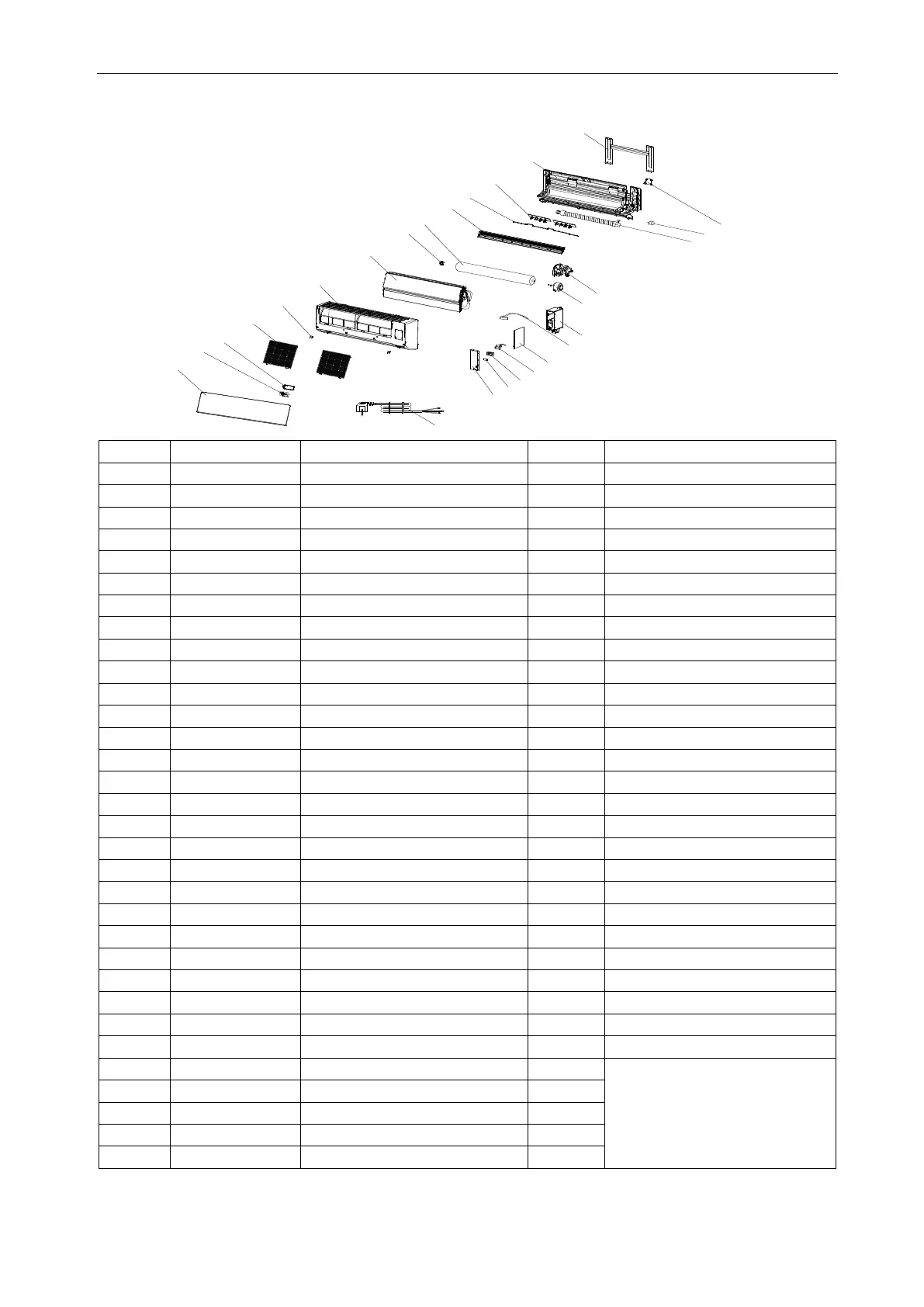

Indoor Unit- TAC-18CHSA/XA71 INVERTER
No.
Part No.
Part Name
Q’ty
Remark
1
210838037
Installation Plate
1
2
210755494A
Base
1
3
210738575
Vertical Vane Assembly
1
4
210738580
Vertical Vane Connector
1
5
210738661
Vane
1
6
1070020024AA
Cross Fan
1
7
1070100010
Bearing Mount
1
8
211238370
Evaporator
1
9
210738663
Face Frame
1
10
210701846
Screw Cover
2
11
210738606
Air Filter
1
12
210705767
Display PCB Box
1
13
210901127S
Display PCB
1
14
210755450
Front Panel
1
15
1170210143B
Power Supply Cord
1
16
210738393
Electrical Box Cover
1
17
210736832
Cable Clamp
1
18
210900478A
Terminal
1
19
210901224
Transformer
1
20
210901714AC
Main PCB
1
21
210736831
Electrical Box
1
22
210900333
Indoor Sensor Assembly
1
23
1170030101B
Indoor Motor
1
24
210738581
Indoor Motor Cover
1
25
210737091
Drainage Hose
1
26
1170020031AC
Vane Motor
1
27
210736813
In And Out Pipe Fixer
1
28
210901289T
Remote Controller
1
Not shown in Explosion view
29
210737935
Remote Controller Supporter
1
30
211369420LT
Indoor Carton
1
31
211373587
Left Foaming
1
32
211373589
Right Foaming
1
20
21
19
18
17
14
13
12
11
10
9
8
7
6
5
4
3
2
1
22
23
24
15
16
25
26
27
