TCM FD45T9 - Mast Assembly Removal and Installation

2-66

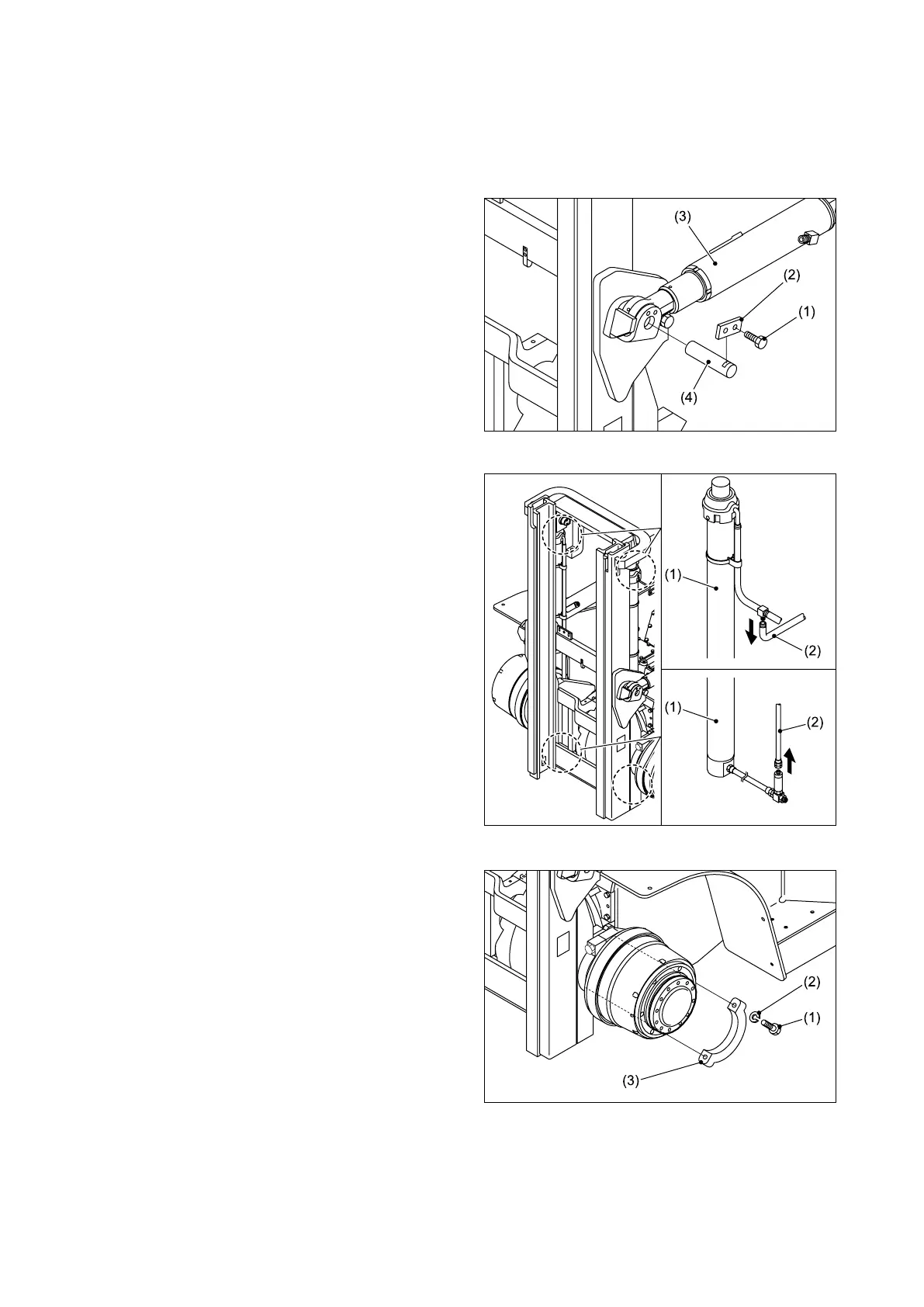

Fig. 2.176
Fig. 2.178
Fig. 2.177
2.17 MAST ASSEMBLY
■ REMOVAL
① Slightly support the top cross-member of the
outer channel of the mast assembly using a
crane.
② Remove the bolts (1) and plate (2). Then
remove the mast-side connecting pin (4) of
the tilt cylinder (3).
③ Disconnect the hoses (2) from the lift
cylinders (1).
④Remove the bolts (1) and spring washers (2)
that secure the mast support located at the
bottom of the mast assembly. Then remove
the mast support caps (3).
