TCM FD45T9 - Electrical Parts; Head Lamp

2-1
Fig. 2.1
Fig. 2.2
Fig. 2.3
Fig. 2.4

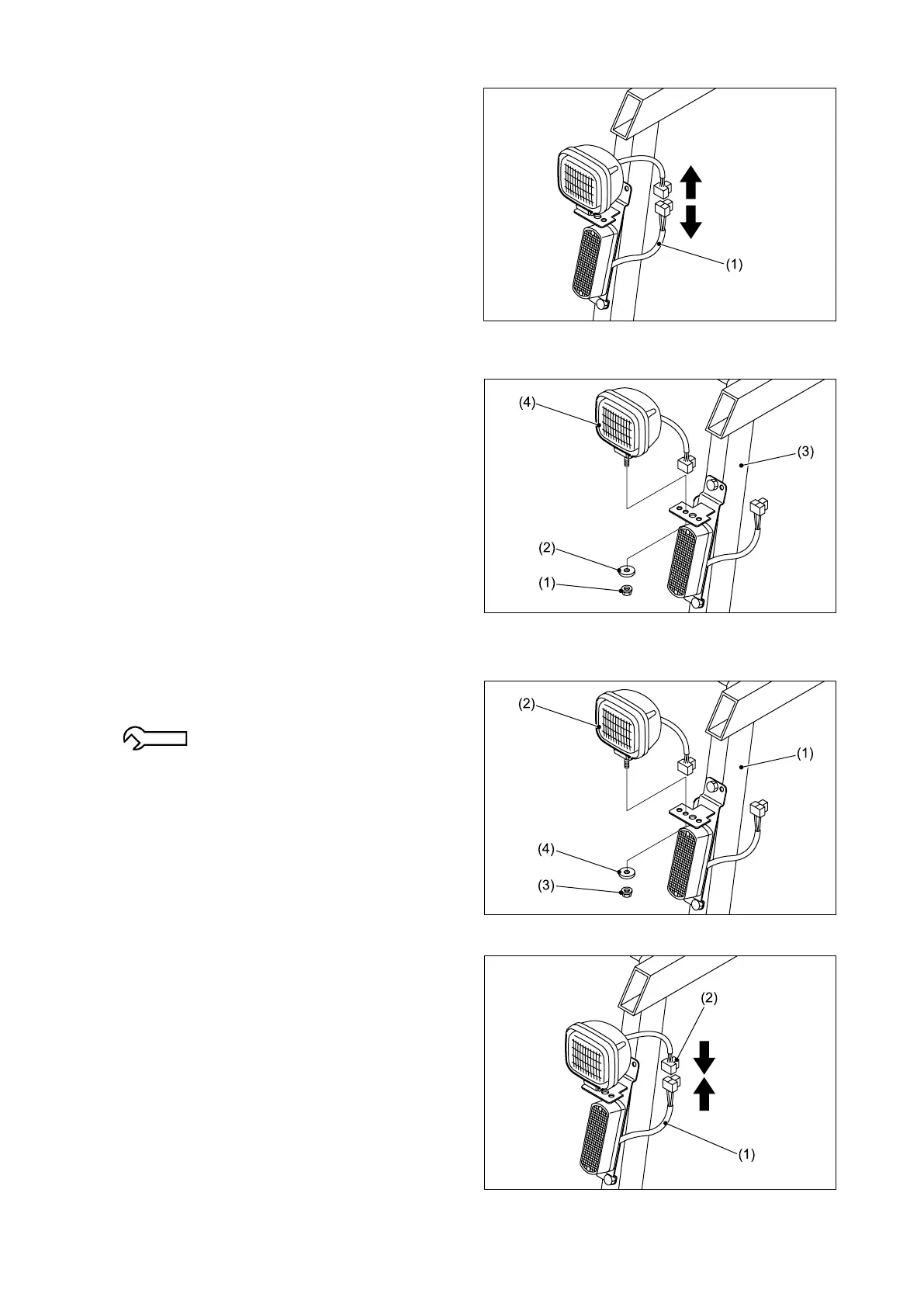

2.1 ELECTRICAL PARTS
2.1.1 HEAD LAMP
■ REMOVAL
① Disconnect the connector of the head lamp
from the connector of the wire harness (1) on
the overhead guard.
② Remove the nut (1) and the washer (2).
Remove the head lamp (4) from the overhead
guard (3).
■ REINSTALLATION
① Install the head lamp (2) on the overhead
guard (1) using the nut (3) and washer (4).
7.8 - 11.7 N-m {0.8 - 1.2 kgf-m}
[5.8 - 8.6 lbf-ft]
② Connect the connector (2) of the head lamp to
the connector of the wire harness (1) on the
overhead guard.
