TCM FD45T9 - To 5.0-Ton Trucks)

3-81
Fig. 3.255
Fig. 3.258
Fig. 3.257
Fig. 3.256
3.4.2 (4.5- to 5.0-ton trucks)

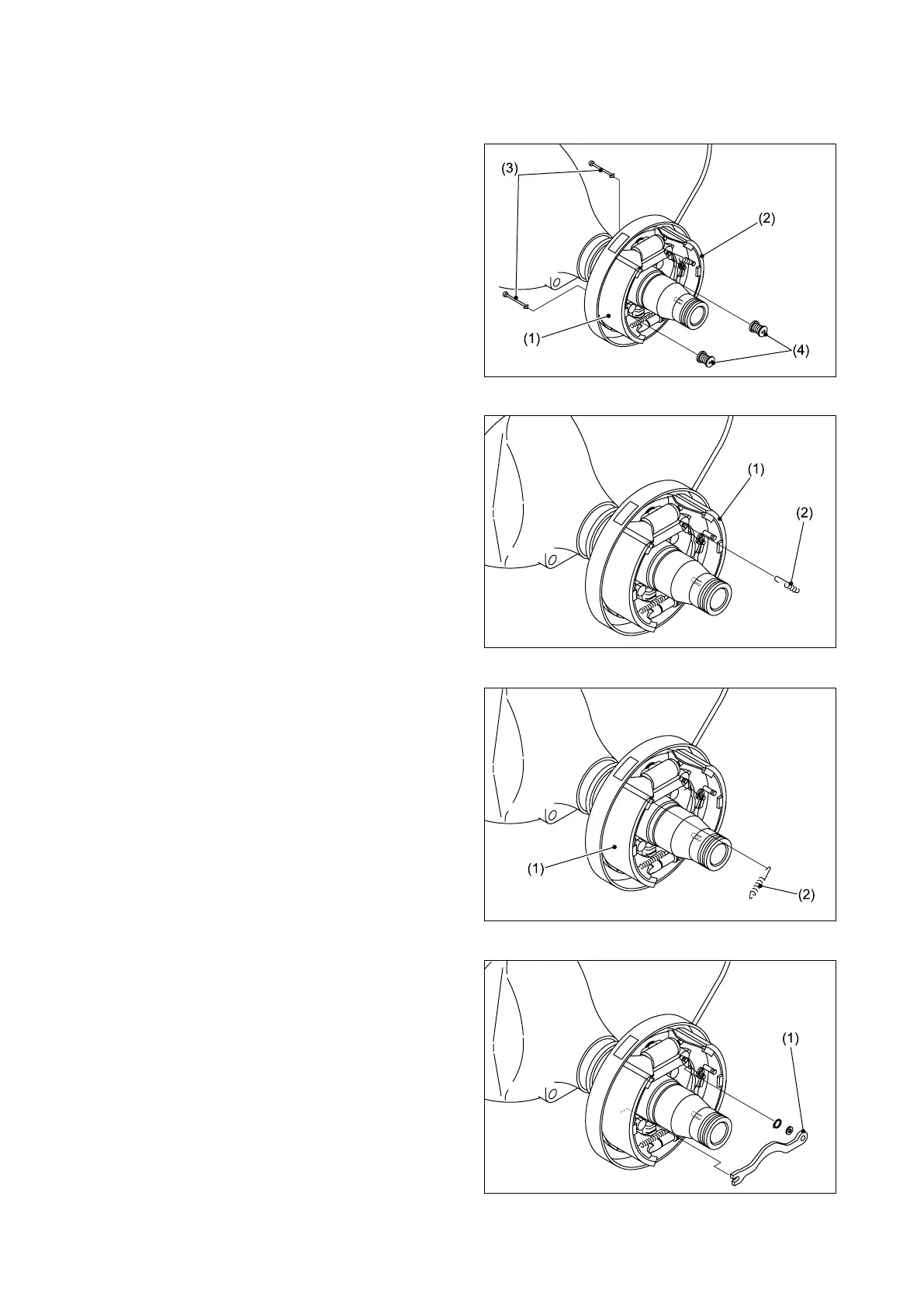

■DISASSEMBLY
① Remove the hold pins (3) and spring retainers
(4) from each of the primary shoe (1) and
secondary shoe (2).
② Remove the return spring (2) from the
secondary shoe (1).
③ Remove the return spring (2) from the primary
shoe (1).
④ Remove the strut (1).
