TCM FD45T9 - A BRAKE PEDAL (Automatic Transmission Trucks)

2-31
Fig. 2.89
Fig. 2.91
Fig. 2.90

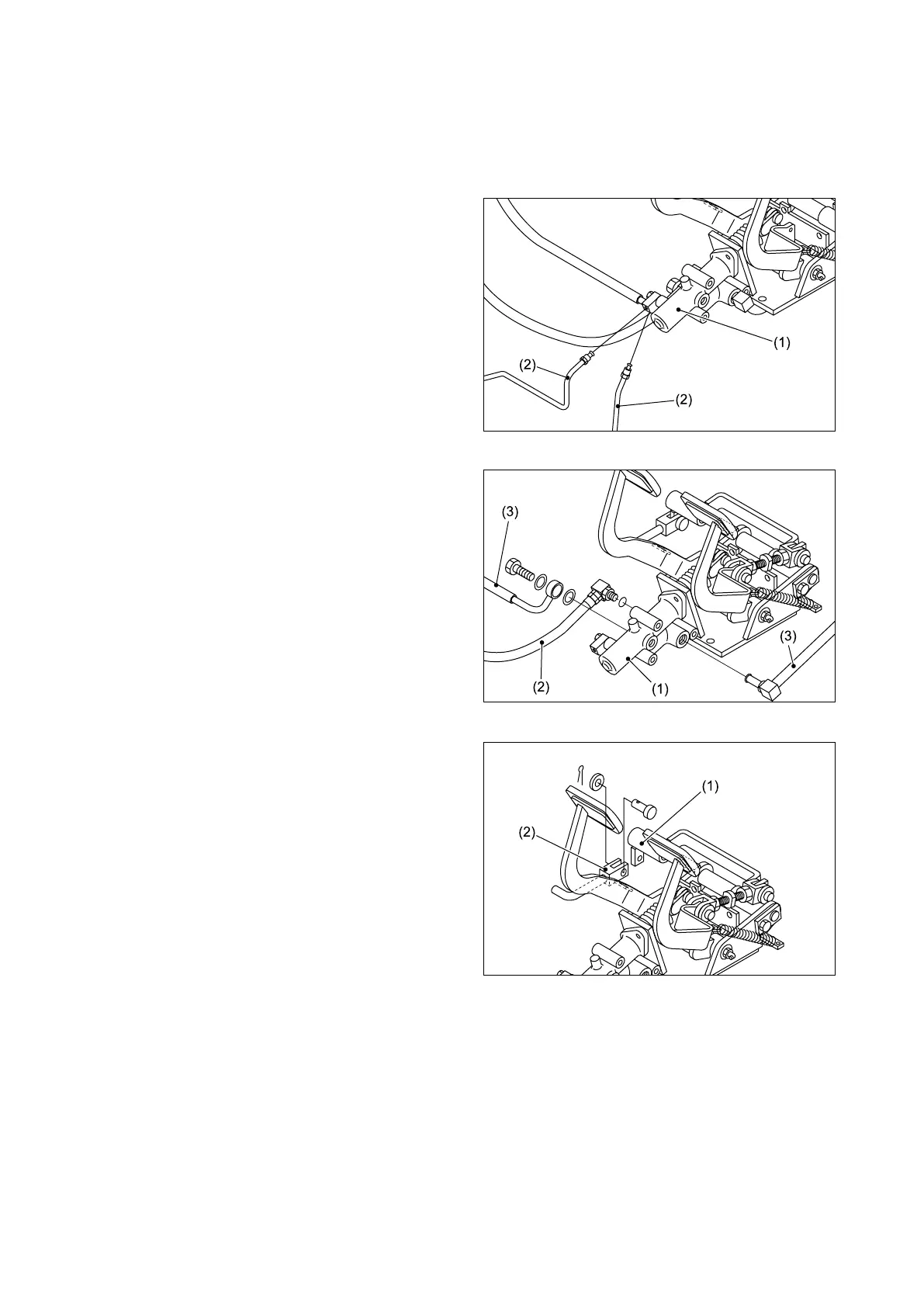

2.9A BRAKE PEDAL (automatic transmission trucks)
■ REMOVAL
① Removetheoorboardkit.(See“2.8FRONT
GUARD.”)
② Remove the brake pipes (2) from the brake
booster (1).
③Remove the high-pressure hose (2) from the
brake booster (1). Remove the two return
hoses (3) from the brake booster (1).
④ Remove the connecting rod (2) from the
linkage (1).
