TCM FD45T9 - Page 198

3-84
(1)
(1)
(2)
(2)
(3)
(4)
(5)
(5)
(6)
(7)

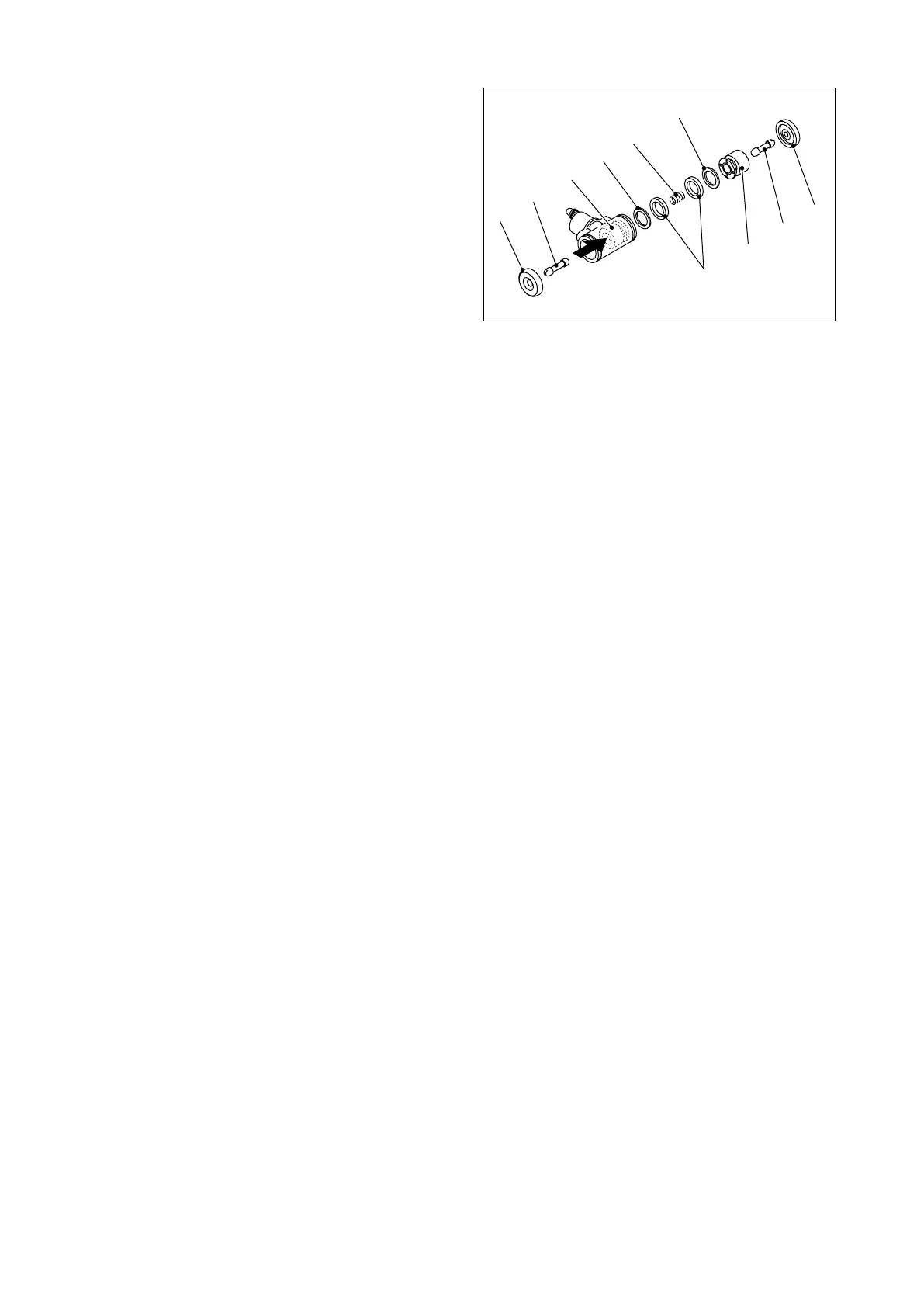

Fig. 3.267
⑬ Disassemble the wheel cylinder as follows:
● Removethepushrod(1)anddustcover(2)
from each side of the wheel cylinder.
● Press one piston (3) into one end of the
cylinder to remove the piston (4), back-up
ring (5), piston cup (6) and spring (7) from the
other end of the cylinder.
● Pressthepiston(3)withthengerstoremove
from the cylinder.
