3-142
Fig. 3.454
Fig. 3.456
Fig. 3.455

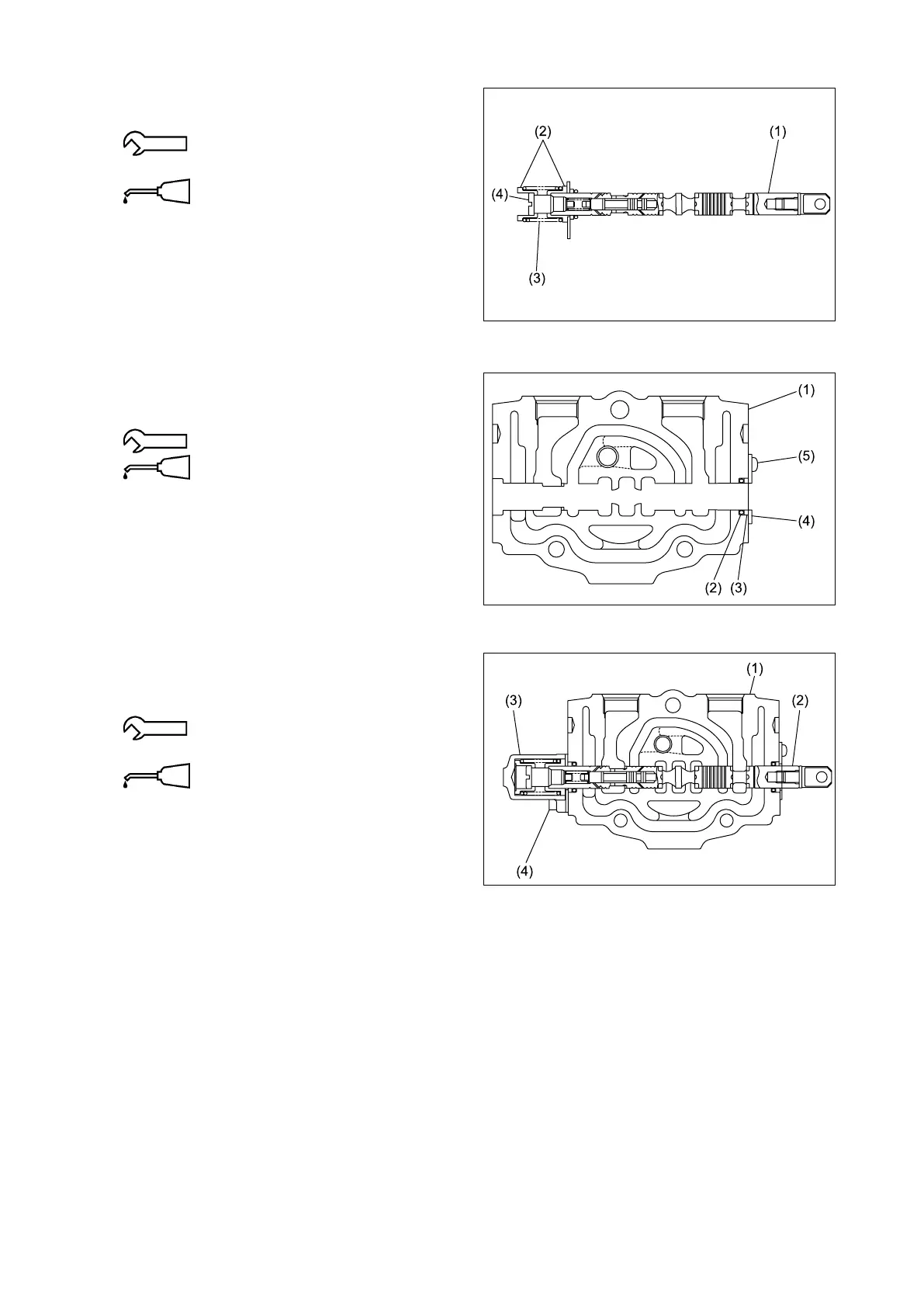

③ Install the spring seats (2) and spring (3) to
the spool (1). Tighten the cap screw (4).
12 - 14 N-m {1.2 - 1.4 kgf-m}
[8.9 - 10.3 lbf-ft]
Threads: Hydraulic oil
④ Install the “O”-ring (2), wiper (3) and seal
plate (4) to the valve housing (1). Tighten the
screw (5).
2.9 N-m {0.3 kgf-m} [2.14 lbf-ft]
Threads: Hydraulic oil
⑤ Insert the spool (2) into the housing (1).
Install the cap (3) and tighten the socket head
bolts (4).
9 - 11 N-m {0.9 - 1.1 kgf-m}
[6.6 - 8.1 lbf-ft]
Threads: Hydraulic oil
To Next Page
