TCM FD45T9 - Page 261

3-147

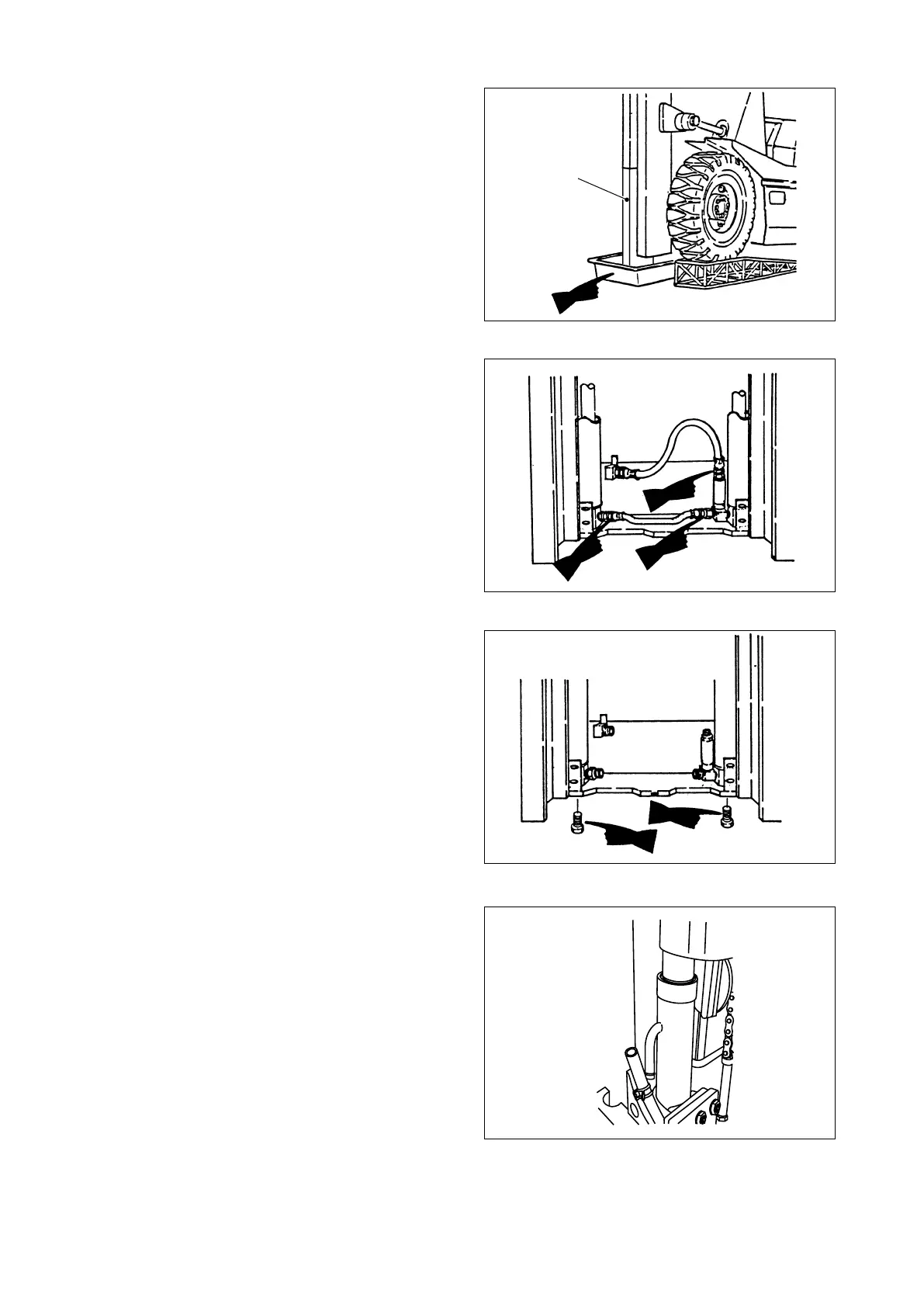

Fig. 3.469
Fig. 3.470
Fig. 3.471
Fig. 3.472
⑤ Put an oil pan under the cylinders to receive
oil drained from the cylinders and piping.
⑥ Remove the hoses from the cylinders.
⑦ Remove the set bolts from the bottom of each
cylinder.
⑧ Remove the return hose from each of the
cylinder caps.
FALL
PREVENTION
BLOCK
