2-12

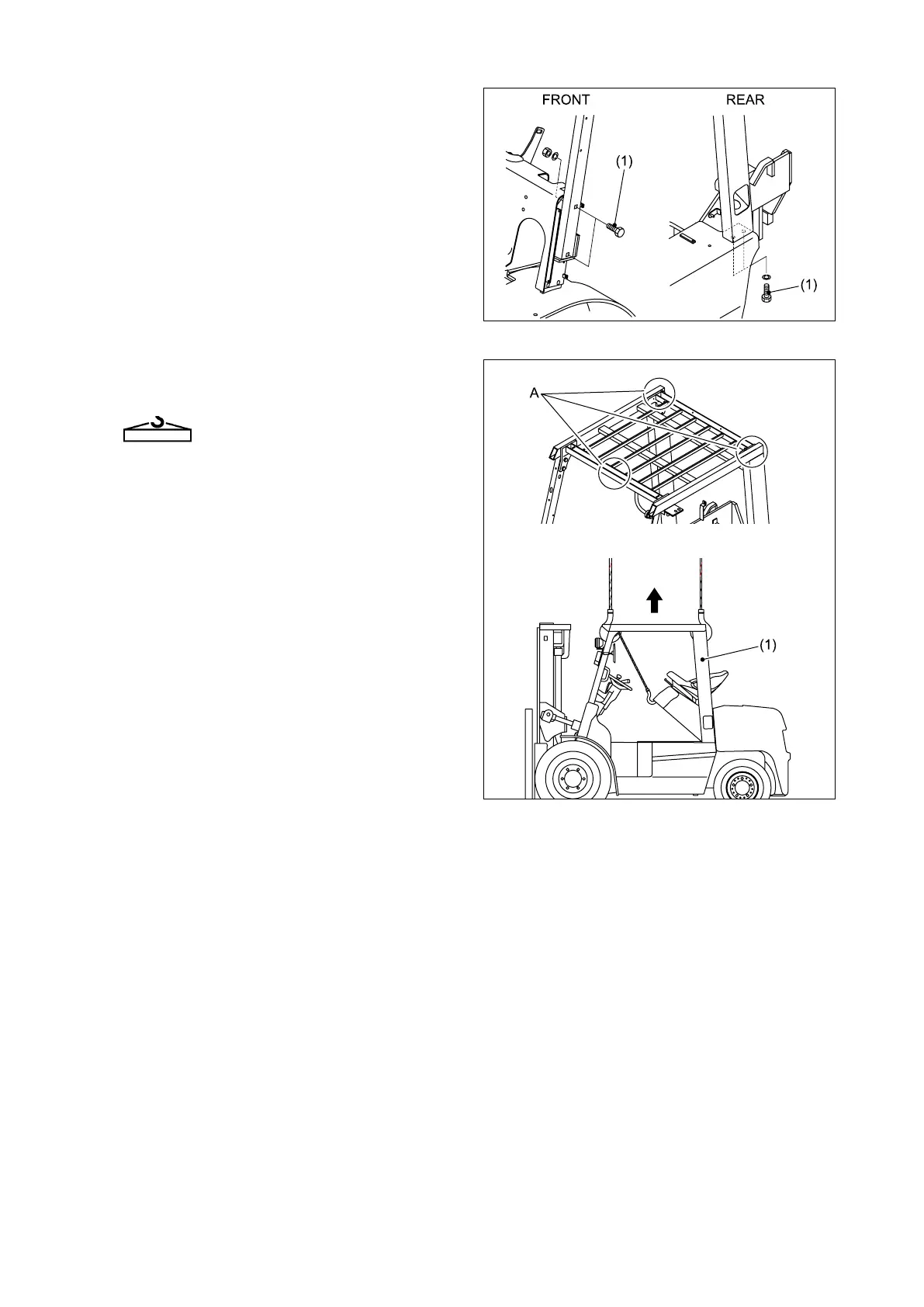

Fig. 2.39
Fig. 2.40
⑨ Remove the bolts (1) securing the overhead
guard.
⑨ Hoist the overhead guard (1) off from the
frame with the wire ropes attached to sections
A.
154 kg [340 lbs]
