Crimp the conductors to the PIN DIA8.0 CONTACT [Pos. 12] with the specified tools. Care shall be
taken that all braids are caught in the crimp. Not inserted braids may jeopardize HV requirements!
Wires shall be completely inserted to be visible through the inspection hole (Figure 36). Crimp height H
shall be conform to dimension acc. table 1.
ATTENTION:
Any damage of the wire isolation must to be avoided!
Step 6 (for all DC-HV-Cable Assemblies)
The two SEALINGS [Pos. 13] have to be placed on the PIN DIA8.0 CONTACTS. Ensure correct orientation
acc. Figure 37 (sealing libs on outside).

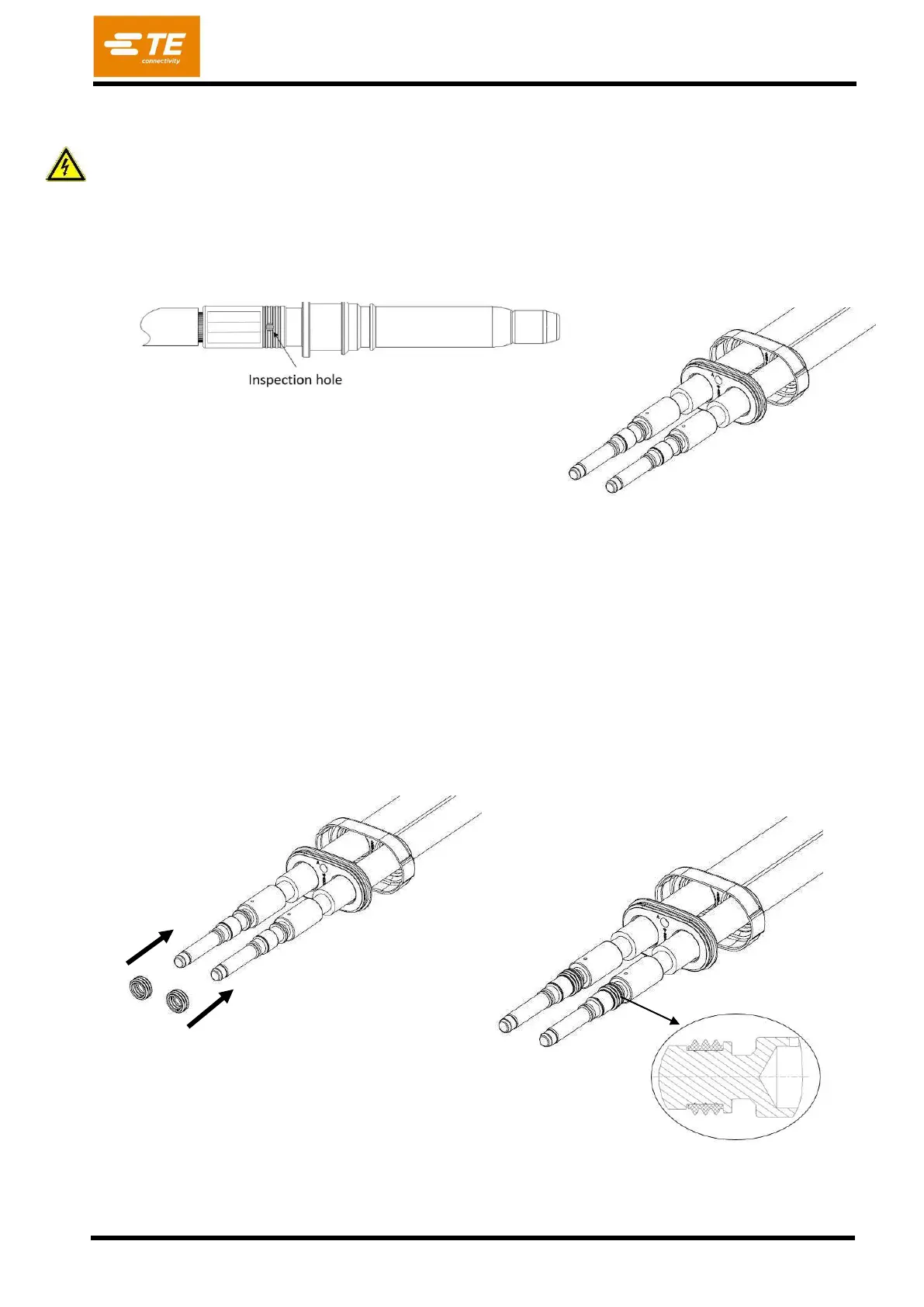

Figure 36
Figure 37
