114-94438 REV C1

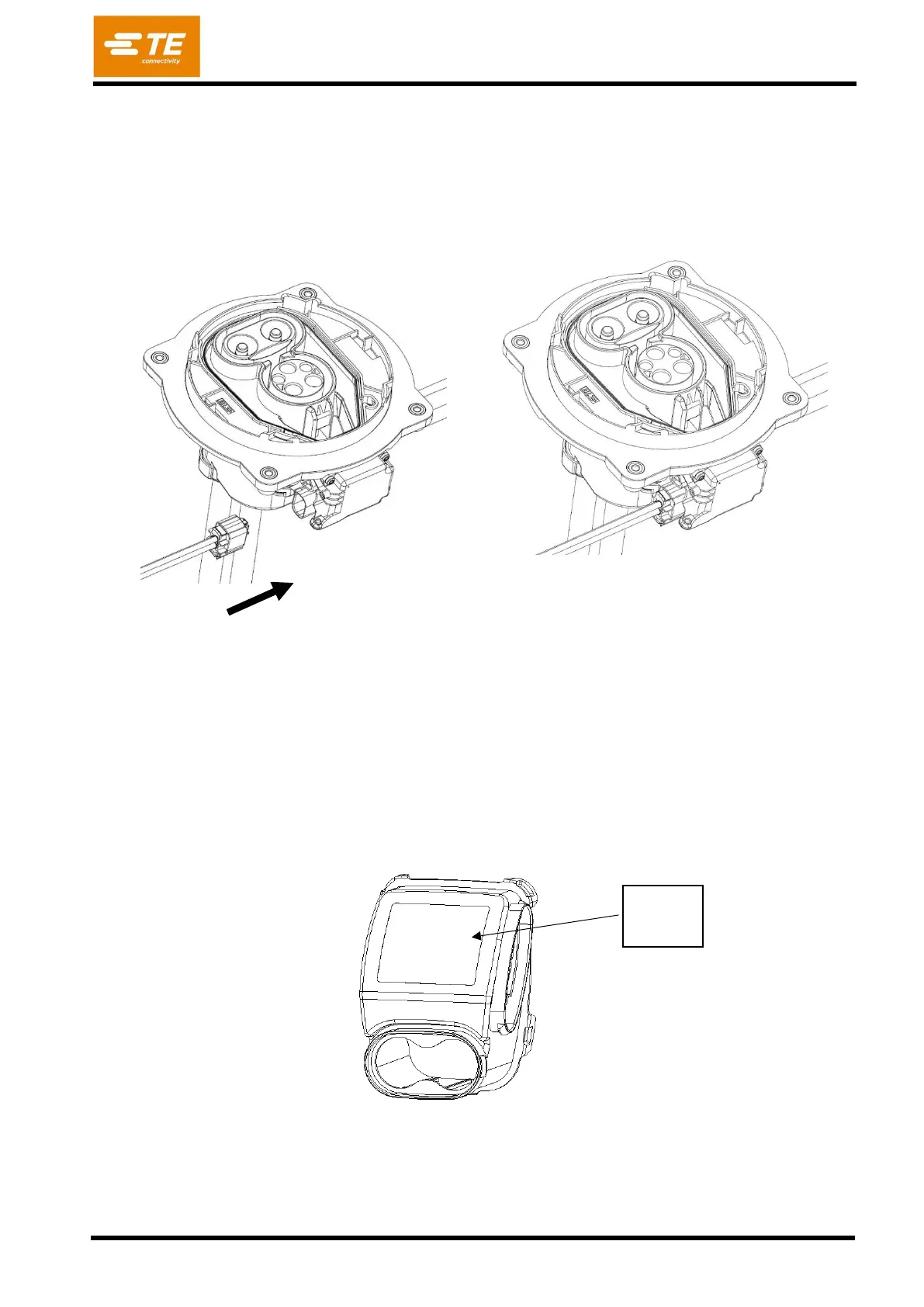

Step 16
Assemble the Connector for the Actuator connection acc. to application spec of MQS-Connector.
(Applicator 2151038; Die Set 5-1579001-1).
Push connector on actuator housing. To ensure that the connector is correctly inserted, pull and push
with a low force on the housing (max. 10N).
Step 17
Apply a label on specified face of CABLE EXIT. The label needs to include information acc.
requirements of IEC62196-x / SAE J1772. Also information acc. to customer requirements can be
applied here.
