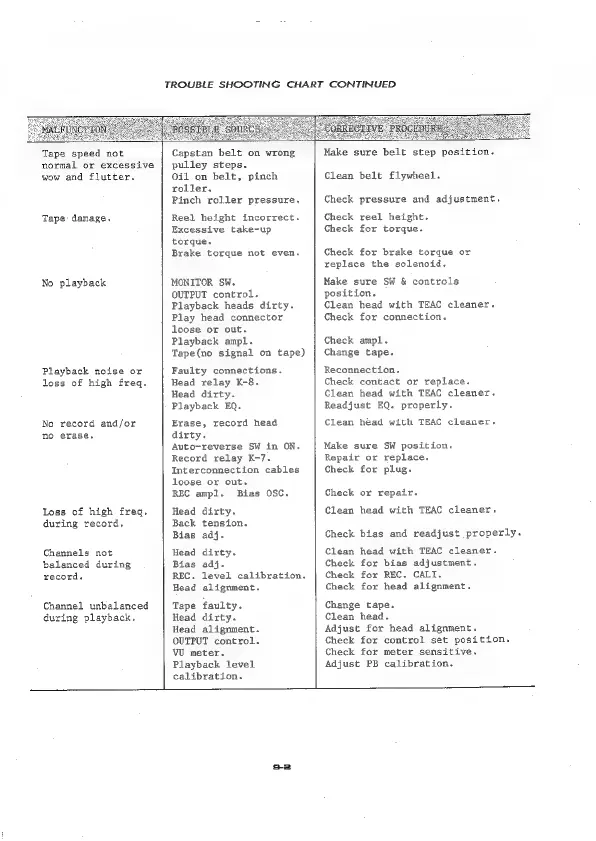

TROUBLE SHOOTING CHART CONTINUED
Tape speed not
normal or excessive
wow and flutter.
Tape damage.
No playback
Playback noise or
loss of high freq.
No record and/or
no erase.
Loss of high freq.
during record.
Channels not
balanced during
record.
Channel unbalanced
during playback.
Capstan belt on wrong
pulley steps.
Oil on belt, pinch
roller.
Pinch roller pressure.
Reel height incorrect.
Excessive take-up
torque.
Brake torque not even.
MONITOR SW.
OUTPUT control.
Playback heads dirty.
Play head connector
loose or out.
Playback ampl.
Tape(no signal on tape)
Faulty connections.
Head relay K-8.
Head dirty.
Playback EQ.
Erase, record head
dirty.
Auto-reverse SW in ON.
Record relay K-7.
Interconnection cables
loose or out.
REC ampl. Bias OSC.
Head dirty.
Back tension.
Bias adj.
Head dirty.
Bias adj.
REC. level calibration.
Head alignment.
Tape faulty.
Head dirty.
Head alignment.
QUIPUT control.
VU meter.
Playback level
calibration.
Clean belt flywheel.
Check pressure and adjustment.
Check reel height.
Check for torque.
Check for brake torque or
replace the solenoid.
Make sure SW & controls
position.
Clean head with TEAC cleaner.
Check for connection.
Check ampl.
Change tape.
Reconnection.
Check contact or replace.
Clean head with TEAC cleaner.
Readjust EQ. properly.
Clean head with TEAC cleaner.
Make sure SW position.
Repair or replace.
Check for plug.
Check or repair.
Clean head with TEAC cleaner.
Check bias and readjust properly.
Clean head with TEAC cleaner.
Check for bias adjustment.
Check for REC. CALI.
Check for head alignment.
Change tape.
Clean head.
Adjust for head alignment.
Check for control set position.
Check for meter sensitive.
Adjust PB calibration.
