Teac A-6010GSL - Partial Disassembly

4. PARTIAL DISASSEMBLY
TAPE TRANSPORT REMOVAL
AMPLIFIER
Remove power cord and other connecting cords.
Lay the equipment face down on a soft mat.
Remove the two rear cover screws on the top of rear cover.
Remove three upper screws on both sides of the case.
Gently lift the case from the tape transport.
REMOVAL
Remove two screws on both sides of the case.
Slide the amplifier from case.

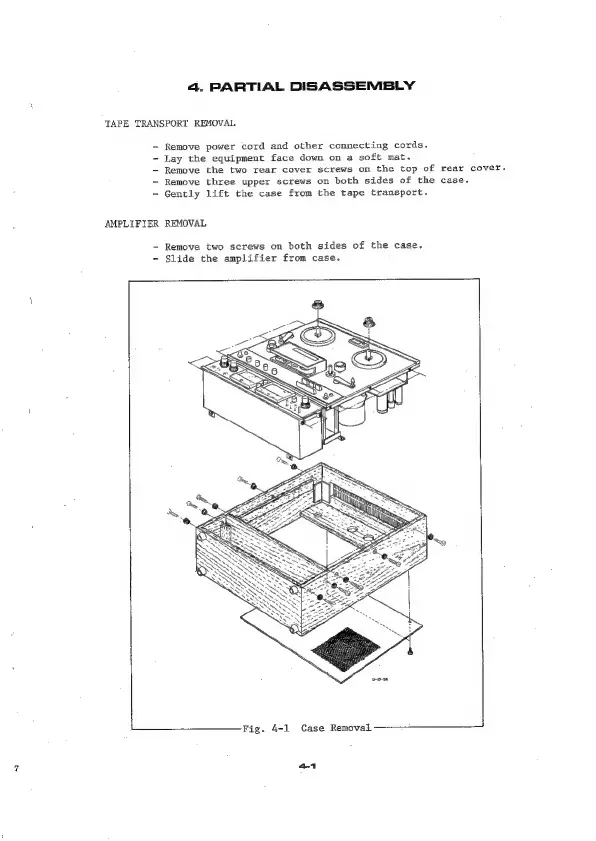

Fig. 4-1 Case Removal
