Teac A-6010GSL - Bias Adjust Assy

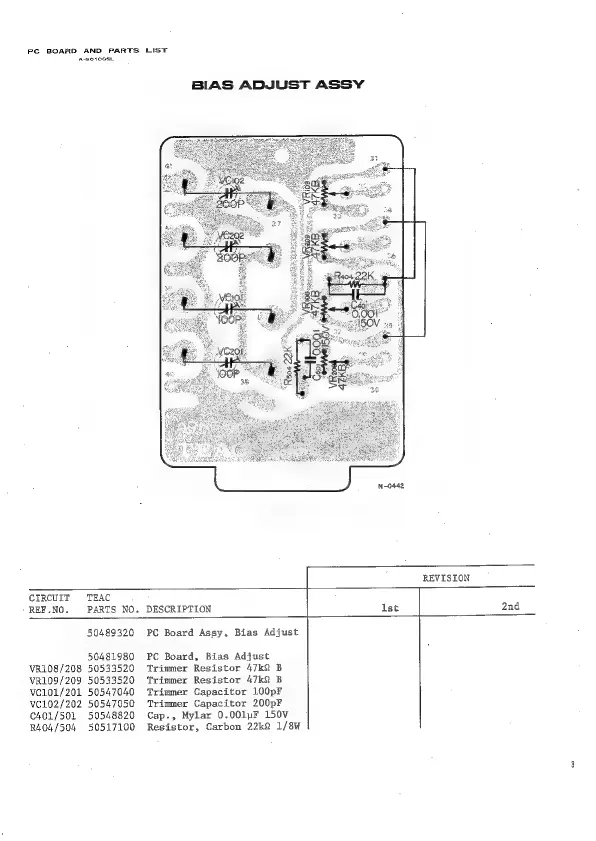

PC BOARD AND PARTS LIST
a-so1ocst
BIAS ADJUST ASSY
REVISION
CIRCUIT TEAC
REF .NO. PARTS NO.
DESCRIPTION
1st
2nd
50489320
50481980
VR108/208 50533520
VR109/209 50533520
VG101/201 50547040
VC102/202 50547050
C401/501 50548820
R404/504 50517100
PC Board Assy, Bias Adjust
PC Board, Bias Adjust
Trimmer Resistor 47kQ B
Trimmer Resistor 47k2 B
Trimmer Capacitor 100pF
Trimmer Capacitor 200pF
Cap., Mylar 0.001uF 150V
Resistor, Carbon 22k 1/8W
