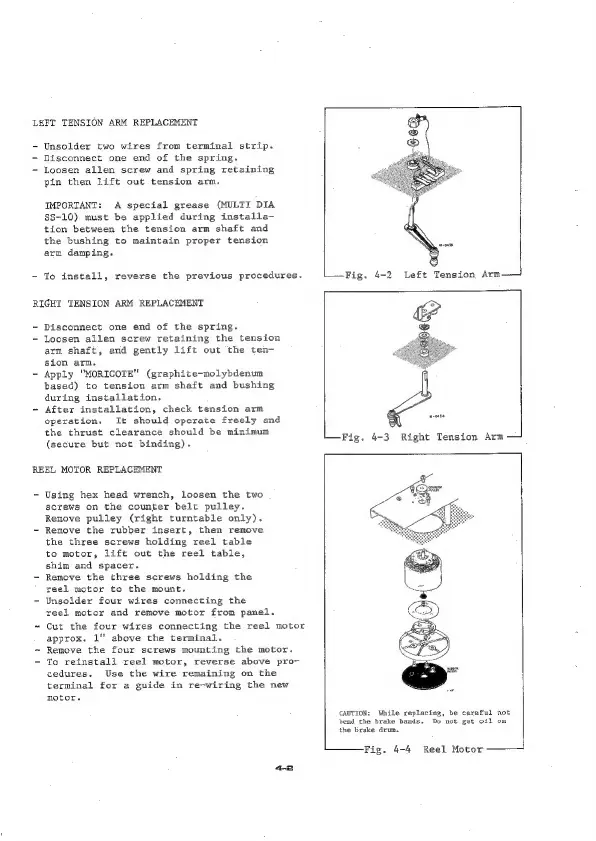

Teac A-6010GSL - Left Tension Arm Replacement; Right Tension Arm Replacement; Reel Motor Replacement

LEFT TENSION ARM REPLACEMENT
- Unsolder two wires from terminal strip.
- Disconnect one end of the spring.
- Loosen allen screw and spring retaining
pin then lift out tension arm.
IMPORTANT: A special grease (MULTI DIA
$S8-10) must be applied during installa-
tion between the tension arm shaft and
the bushing to maintain proper tension
arm damping.
- To install, reverse the previous procedures.
RIGHT TENSION ARM REPLACEMENT
- Disconnect one end of the spring.
- Loosen allen screw retaining the tension
arm shaft, and gently lift out the ten-
sion arm.
- Apply "MORICOTE" (graphite-molybdenum
based) to tension arm shaft and bushing
during installation.
~ After installation, check tension arm
operation, It should operate freely and
the thrust clearance should be minimum
(secure but not binding).
REEL MOTOR REPLACEMENT
- Using hex head wrench, loosen the two
screws on the counter belt pulley.
Remove pulley (right turntable only).
- Remove the rubber insert, then remove
the three screws holding reel table
to motor, Lift out the reel table,
shim and spacer.
- Remove the three screws holding the
reel motor to the mount.
- Unsolder four wires connecting the
reel motor and remove motor from panel.
~ Cut the four wires connecting the reel motor
approx. 1" above the terminal.
~ Remove the four screws mounting the motor.
- To reinstall reel motor, reverse above pro-
cedures. Use the wire remaining on the
terminal for a guide in re-wiring the new
motor.
L—-Fig. 4-2 Left Tension Arm——
&F
eS
o>
Lange: 4-3 Right Tension Arm —
CAUTION: While replacing, be careful not
vend the brake bands. Do not get ofl on
the brake drum.
Fig. 4-4 Reel Motor ————
