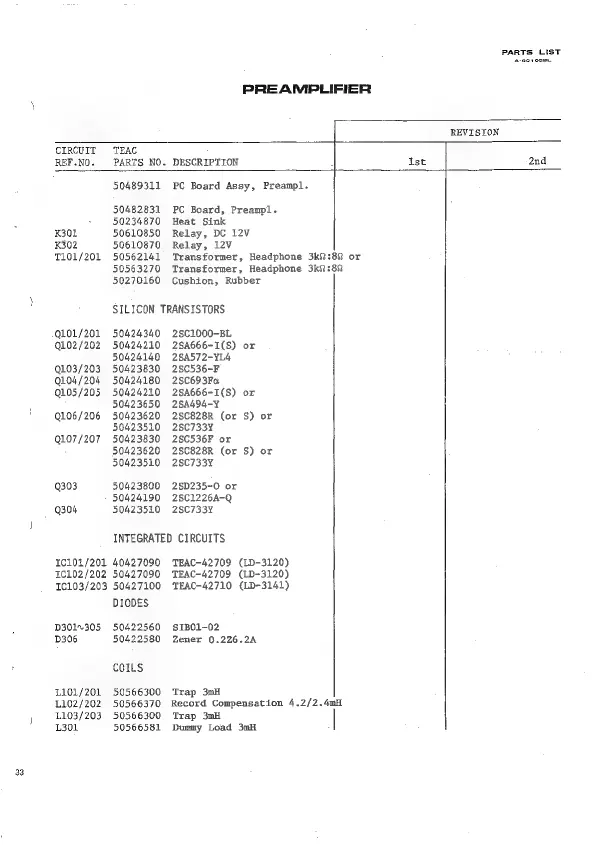

PARTS LIST
A-e0106sL.
PREAMPLIFIER
REVISION
CIRCUIT TEAC
REF.NO. PARTS NO. DESCRIPTION H Ist 2nd
50489311 PC Board Assy, Preampl.
50482831 PC Board, Preampl.
50234870 Heat Sink
K301 50610850 Relay, DC 12V
K302 50610870 Relay, 12V
T101/201 50562141 Transformer, Headphone 3k2:82 or
50563270 Transformer, Headphone 3k2:82
50270160 Cushion, Rubber
SILICON TRANSISTORS
QL01/201 50424340 28C1000-BL
QLO2/202 50424210 2SA666-I(S) or
50424140 2SA572-YL4
QL03/203 50423830 2SC536-F
Q104/204 50424180 28C693Fa
QL05/205 50424210 2SA666-I(S) or
50423650 2SA494-Y
Q106/206 50423620 2SC828R (or S) or
50423510 2SC733Y
Q107/207 50423830 28C536F or
50423620 2SC828R (or S) or
50423510 2SC733Y
Q303 50423800 2SD235-0 or
50424190 2SC1226A-Q
Q304 50423510 2SC733Y
INTEGRATED CIRCUITS
IC101/201 40427090 TEAC-42709 (LD-3120)
1C102/202 50427090 TEAC-42709 (LD-3120)
1C103/203 50427100 TEAC-42710 (LD-3141)
DIODES
D301V305 50422560 sIBO01-02
D306 50422580 Zener 0.226.2A
COILS
1L101/201 50566300 Trap 3mH
L102/202 50566370 Record Compensation 4.2/2.4mH
1L103/203 50566300 Trap 3mH
L301 50566581 Dummy Load 3mH
