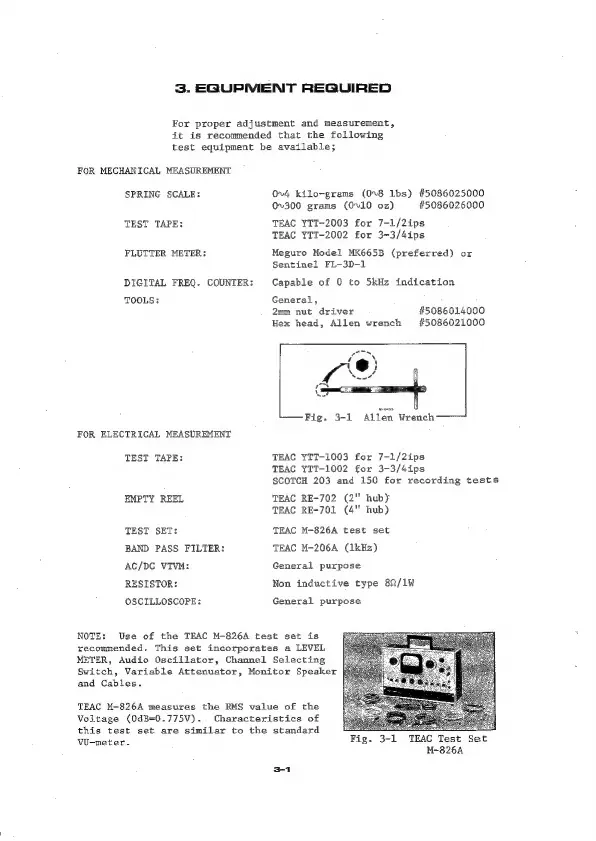

3. EQUPMENT REQUIRED
For proper adjustment and measurement,
it is recommended that the following
test equipment be available;
FOR MECHANICAL MEASUREMENT
SPRING SCALE:
TEST TAPE:
FLUITER METER:
DIGITAL FREQ. COUNTER:
004 kilo-grams (0v8 1bs) #5086025000
0.300 grams (0°10 oz) #5086026000
TEAC YIT-2003 for 7-1/2ips
TEAC YTT-2002 for 3-3/4ips
Meguro Model MK665B (preferred) or
Sentinel FL-3D-1
Capable of 0 to 5kHz indication
TOOLS: Generali,
2mm nut driver #5086014000
Hex head, Allen wrench #5086021000
FOR ELECTRICAL MEASUREMENT
Fig. 3-1 Allen Wrench
TEST TAPE: TEAC YIT-1003 for 7-1/2ips
TEAC YIT-1002 for 3-3/4ips
SCOTCH 203 and 150 for recording tests
EMPTY REEL TEAC RE-702 (2" huby
TEAC RE-701 (4" hub)
TEST SET: TEAC M-826A test set
BAND PASS FILTER: TEAC M-206A (1kHz)
AC/DC VIVM: General purpose
RESISTOR: Non inductive type 8/1W
OSCILLOSCOPE: General purpose
NOTE: Use of the TEAC M-826A test set is
recommended. This set incorporates a LEVEL
METER, Audio Oscillator, Channel Selecting
Switch, Variable Attenuator, Monitor Speaker §
and Cables.
TEAC M-826A measures the RMS value of the
Voltage (OdB=0.775V).. Characteristics of
this test set are similar to the standard 7
VU-meter. Fig.
3-1 TEAC Test Set
M~826A
