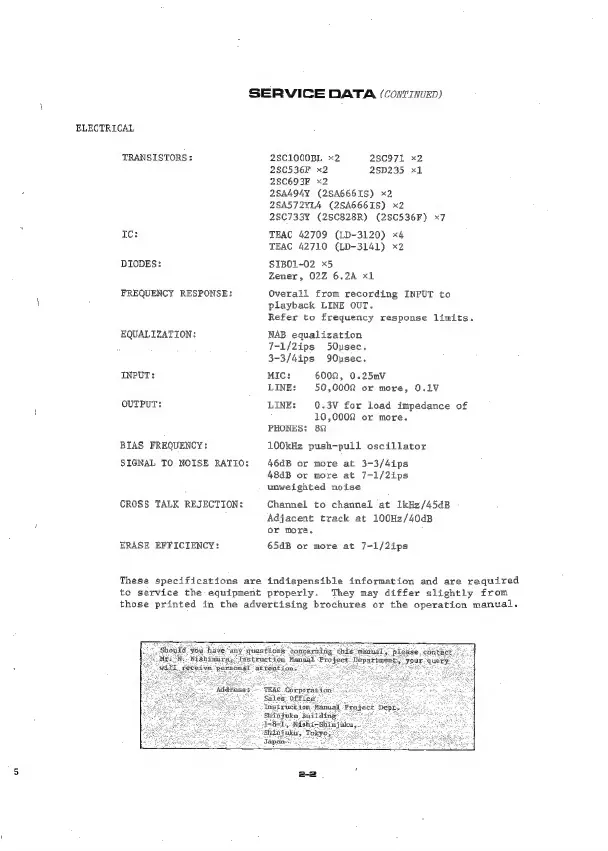

SERVICE DATA (conriaueD)
ELECTRICAL
TRANSISTORS:
Tc:
DIODES:
FREQUENCY RESPONSE:
EQUALIZATION:
INPUT:
OUTPUT:
BIAS FREQUENCY:
SIGNAL TO NOISE RATIO:
CROSS TALK REJECTION:
ERASE EFFICIENCY:
2SC1000BL x2 28C971 x2
28C536F x2 28D235 x1
2S8C693F x2
2SA494Y (2SA666IS) x2
2SA572YL4 (2SA666IS) x2
28C733X (2S8C828R) (2S8C536F) x7
TEAC 42709 (LD-3120) x4
TEAC 42710 (LD-3141) x2
SIBO1-02 x5
Zener, 02Z 6.2A x1
Overall from recording INPUT to
playback LINE OUT.
Refer to frequency response limits.
NAB equalization
7-1/2ips 50usec.
3-3/4ips 90usec.
MIC: 6002, 0.25mV
LINE: 50,0002 or more, 0.1V
LINE: 0.3V for load impedance of
10,0002 or more.
PHONES: 82
100kHz push-pull oscillator
464B or more at 3-3/4ips
484B or more at 7-1/2ips
unweighted noise
Channel to channel at 1lkHz/45dB
Adjacent track at 100Hz/40dB
or more.
65dB or more at 7-1/2ips
These specifications are indispensible information and are required
to service the equipment properly. They may differ slightly from
those printed in the advertising brochures or the operation manual.
